Tie rod end / tie rod end - uniball GASW 14 FLURO - M14 (male)
Tie rod end / tie rod end - uniball GASW 14 FLURO - M14 (male)
Tie rod end / tie rod end - uniball GASW 14 FLURO - M14 (male)
Tie rod end / tie rod end - uniball GASW 14 FLURO - M14 (male)
Tie rod end / tie rod end - uniball GASW 14 FLURO - M14 (male)
Tie rod end / tie rod end - uniball GASW 14 FLURO - M14 (male)
Tie rod end / tie rod end - uniball GASW 14 FLURO - M14 (male)
Tie rod end / tie rod end - uniball GASW 14 FLURO - M14 (male)
Our bestseller

Tie rod end / tie rod end - uniball GASW 14 FLURO - M14 (male)

+ Add to compareAdd to shopping list
  • Tie rod end / tie rod end - uniball GASW 14 FLURO - M14 (male)

24,00 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

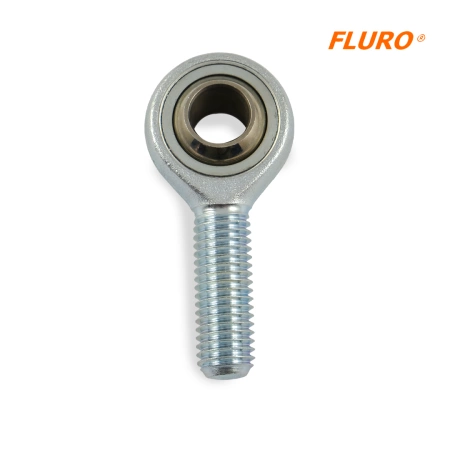

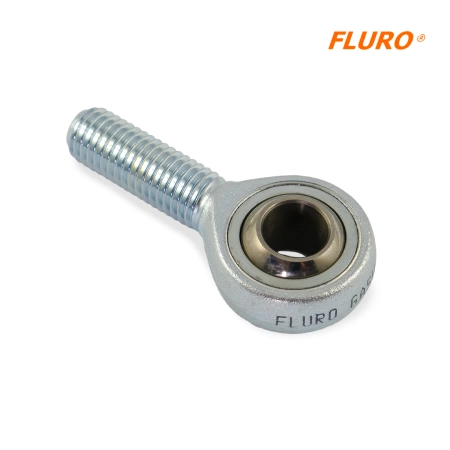

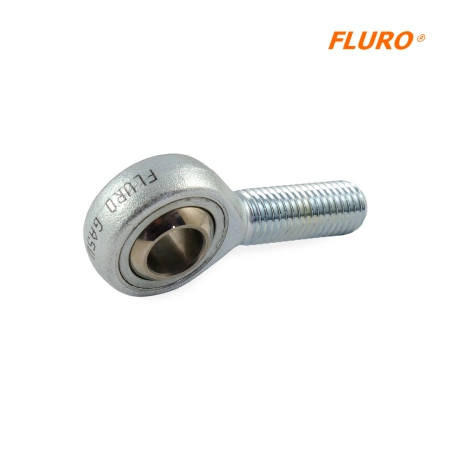

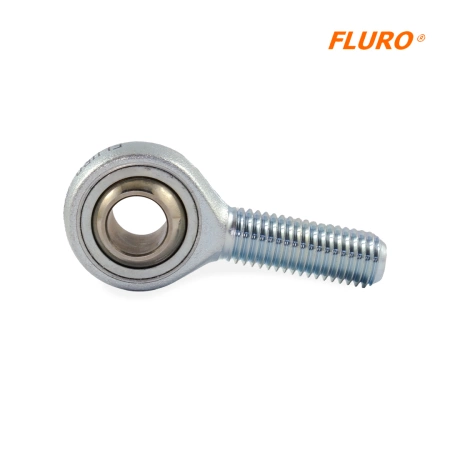

GASW 14 FLURO Rod End - M14





GASW Series - Rod end with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, with PTFE insert (maintenance-free).

For use under dynamic load. Dimensional series K - maintenance-free.

Sliding pair - chrome-plated steel/PTFE





Housing:

up to size 12: free-cutting steel:  [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13], turned

from size 14: heat-treatable steel: [DE C22, FR XC25, IT C21, SE 1450, GB 070M20,  US M1023], forged



Bearing liner: free-cutting steel:  [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13] with bonded PTFE layer.

Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished



Brand
FLURO
Symbol
GASW 14
Type
Fluro GASW - Series
Thread
M14
Type of thread
Male Right
Specification
D - external diameter of the rod head [mm /inch]
36 / 1.42"
W - width of the inner ring [mm /inch]
19 / 0.75"
T - width of the outer ring [mm /inch]
13.5 / 0.53"
L- Lenght [mm /inch]
60 / 2.36"
GM - Thread length [mm /inch]
38 / 1.50"
Deflection angle
32°
Maximum static load [kN / lbs]
21.0 / 4720.99
Maximum dynamic load [kN / lbs]
42.0 / 9441.98
Weight
129 g / 0.284 lbs
