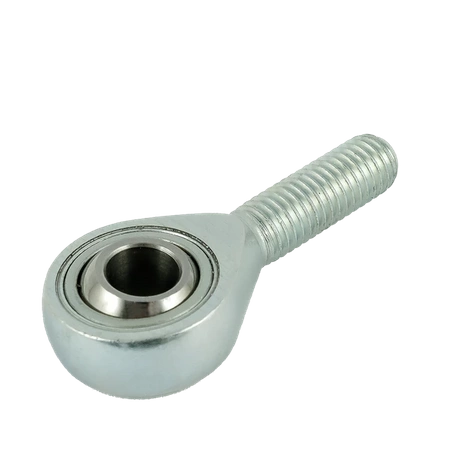

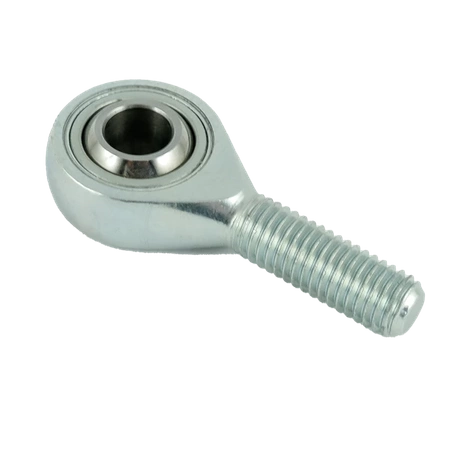

Tie rod end / tie rod end - uniball GA 25 FLURO - M24x2 right (male)
GA Series - Rod end with external thread made of free-machining steel or heat-treatable steel, zinc-plated, lubricated through a concave ball-shaped grease fitting.
Particularly suitable for axial loads. Dimensional series K - standard.
Friction Pair - steel/bronze
Housing:
up to size 12: free-machining steel: [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13], turned
from size 14: heat-treatable steel: [DE C22, FR XC25, IT C21, SE 1450, GB 070M20, US M1023], forged
Bearing bush: special brass CuZn40Al1
Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
60 / 2.36"
W - width of the inner ring [mm /inch]
31 / 1.22"
T - width of the outer ring [mm /inch]
22 / 0.87"
L- Lenght [mm /inch]
94 / 3.70"
GM - Thread length [mm /inch]
21 / 0.83"
Deflection angle
30°
Maximum static load [kN / lbs]
68.0 / 15287.01
Maximum dynamic load [kN / lbs]
35.0 / 7868.31
Weight
600 g / 1.323 lbs
