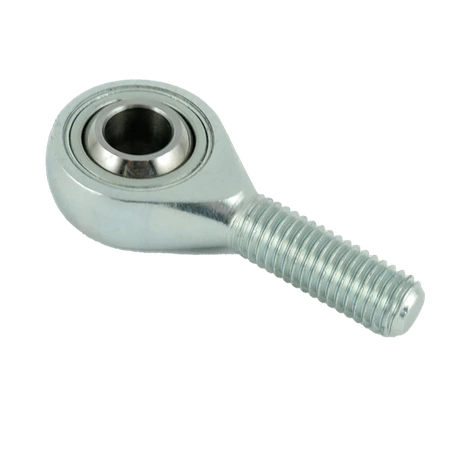

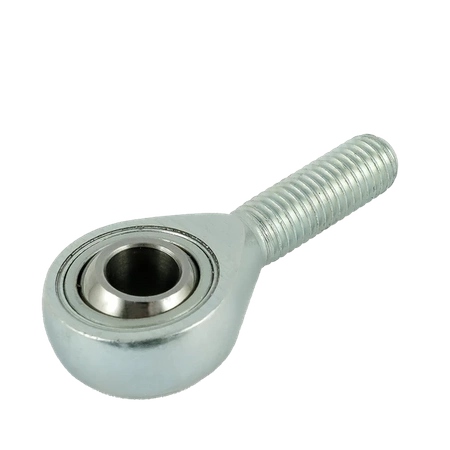

Tie rod end / tie rod end - uniball GAXS 20 FLURO - M20x1.5 right (male)
Tie rod end / tie rod end - uniball GAXS 20 FLURO - M20x1.5 right (male)
Tie rod end / tie rod end - uniball GAXS 20 FLURO - M20x1.5 right (male)
Tie rod end / tie rod end - uniball GAXS 20 FLURO - M20x1.5 right (male)

Tie rod end / tie rod end - uniball GAXS 20 FLURO - M20x1.5 right (male)

+ Add to compareAdd to shopping list
  • Tie rod end / tie rod end - uniball GAXS 20 FLURO - M20x1.5 right (male)

67,00 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

GAXS 20 FLURO rod end - M20x1.5





GAXS Series - Rod end with external thread made of heat-treated steel, galvanized, lubricated through a concave ball grease nipple. For use under high tensile/compressive loads. Dimensional Series K - for demanding applications.

Friction pair - chrome-plated steel/bronze





Housing: heat-treated steel [DE FR IT 42CrMo4, SE 2244, GB 708M40, US Aisi4140], forged

 Bearing liner: special bronze CuSn8

Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished

Brand
FLURO
Symbol
GAXS 20
Type
Fluro GAXS - Series
Thread
M20x1.5
Type of thread
Male Right
Specification
D - external diameter of the rod head [mm /inch]
50 / 1.97"
W - width of the inner ring [mm /inch]
25 / 0.99"
T - width of the outer ring [mm /inch]
18 / 0.71"
L- Lenght [mm /inch]
78 / 3.07"
GM - Thread length [mm /inch]
47 / 1.85"
Deflection angle
28°
Maximum static load [kN / lbs]
93.5 / 21019.64
Maximum dynamic load [kN / lbs]
31.5 / 7081.48
Weight
348g / 0,77lbs
