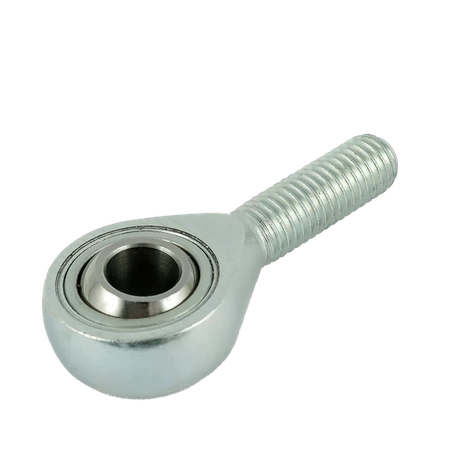

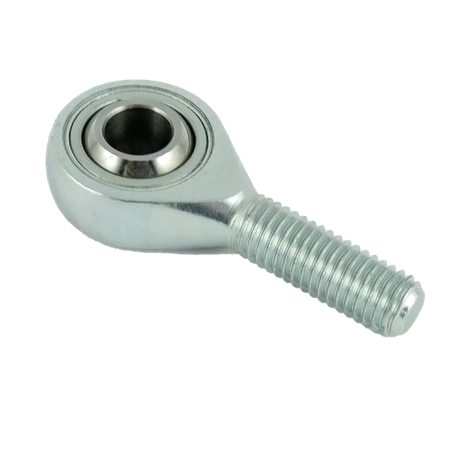

Rod End GARS 8 FLURO - M8
GARS Series - Rod end with external thread made of stainless steel, lubricated through a concave ball socket. For use in corrosion-prone areas. Dimensional series K - stainless.
Friction pair - chrome-plated steel/steel
Housing: stainless steel 1.4057, forged, polished. Size 40 made of stainless steel 1.4057, machined
Bearing shell: special bronze CuSn8
Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, hard chrome-plated on sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
24 / 0.95"
W - width of the inner ring [mm /inch]
12 / 0.47"
T - width of the outer ring [mm /inch]
9 / 0.35"
L- Lenght [mm /inch]
42 / 1.65"
GM - Thread length [mm /inch]
25 / 0.98"
Deflection angle
28°
Maximum static load [kN / lbs]
16.1 / 3619.42
Maximum dynamic load [kN / lbs]
7.1 / 1596.14
Weight
33 g / 0,073 lbs
