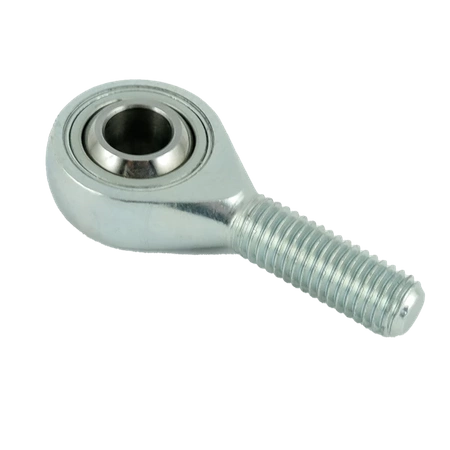

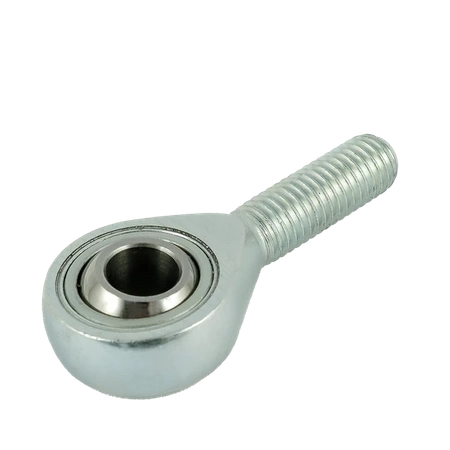

Rod End GARS 20 R FLURO - M20x1.5
GARS Series - Rod end with stainless steel housing and inner ring, lubricated through a concave ball socket. For use in corrosion-prone areas. Dimensional series K - stainless.
Friction pair - NIRO/bronze
Housing: stainless steel 1.4057, forged, polished. Size 40 made of stainless steel 1.4057, machined
Bearing shell: special bronze CuSn8
Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, hard chrome-plated on sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
50 / 1.97"
W - width of the inner ring [mm /inch]
25 / 0.99"
T - width of the outer ring [mm /inch]
18 / 0.71"
L- Lenght [mm /inch]
78 / 3.07"
GM - Thread length [mm /inch]
47 / 1.85"
Deflection angle
28°
Maximum static load [kN / lbs]
93.5 / 21019.64
Maximum dynamic load [kN / lbs]
31.5 / 7081.48
Weight
348g / 0,77lbs
