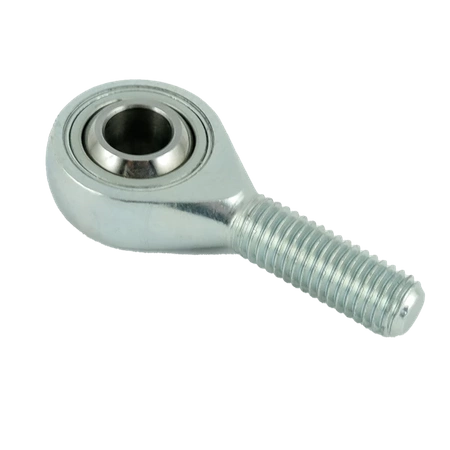

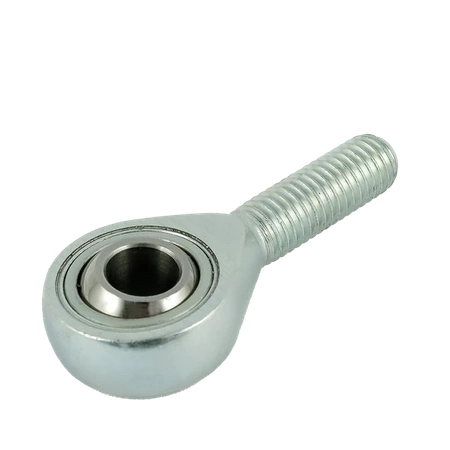

Rod End GARS 6 R FLURO - M6
GARS Series - Rod end with stainless steel housing and inner ring, lubricated through a concave ball socket. For use in corrosion-prone areas. Dimensional series K - stainless.
Friction pair - NIRO/bronze
Housing: stainless steel 1.4057, forged, polished. Size 40 made of stainless steel 1.4057, machined
Bearing shell: special bronze CuSn8
Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, hard chrome-plated on sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
20 / 0,79"
W - width of the inner ring [mm /inch]
9 / 0.35"
T - width of the outer ring [mm /inch]
6.75 / 0.27"
L- Lenght [mm /inch]
30 / 1.18"
GM - Thread length [mm /inch]
12 / 0.47"
Deflection angle
23°
Maximum static load [kN / lbs]
9.8 / 2213.13
Maximum dynamic load [kN / lbs]
4.3 / 966.68
Weight
23 g
