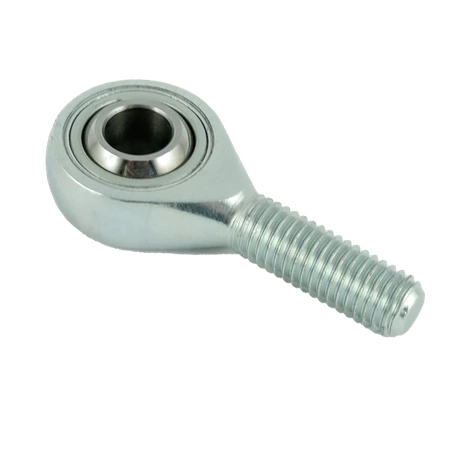

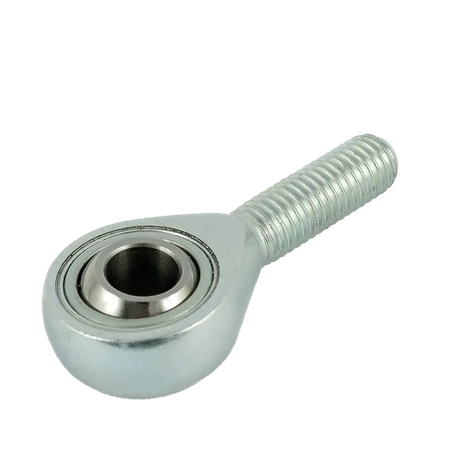

Rod End GARS 10x1.25 R FLURO - M10x1.25
GARS Series - Rod end with stainless steel housing and inner ring, lubricated through a concave ball socket. For use in corrosion-prone areas. Dimensional series K - stainless.
Friction pair - NIRO/bronze
Housing: stainless steel 1.4057, forged, polished. Size 40 made of stainless steel 1.4057, machined
Bearing shell: special bronze CuSn8
Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, hard chrome-plated on sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
28 / 1.10"
W - width of the inner ring [mm /inch]
14 / 0.55"
T - width of the outer ring [mm /inch]
10.5 / 0.41"
L- Lenght [mm /inch]
48 / 1.89"
GM - Thread length [mm /inch]
29 / 1.14"
Deflection angle
26°
Maximum static load [kN / lbs]
31.4 / 7059.00
Maximum dynamic load [kN / lbs]
10.0 / 2248.09
Weight
69 g
