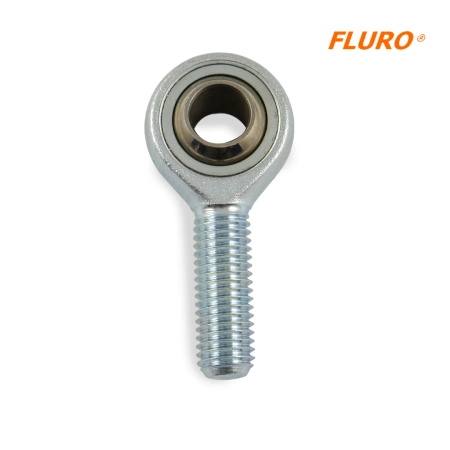

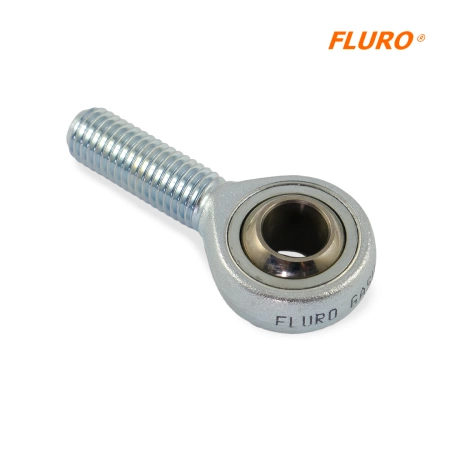

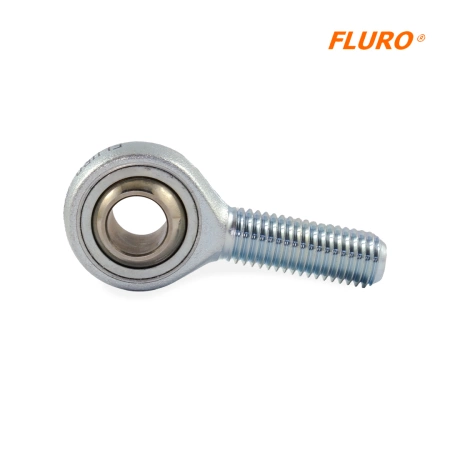

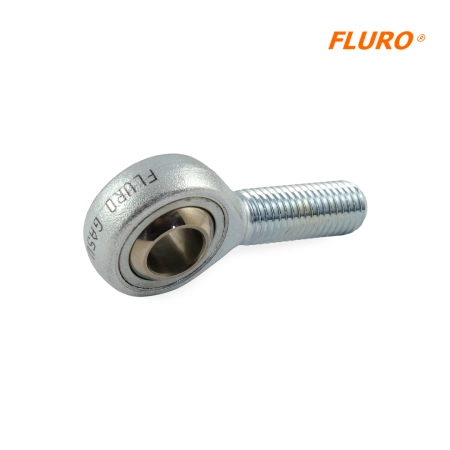

GASW 16-2RS FLURO Rod End - M16





GASW Series - Rod end with an external thread made of free-cutting steel or heat-treatable steel, zinc-plated, with a PTFE insert (maintenance-free).

For use under dynamic load. Dimension series K - with sealing.

Sliding pair - chrome steel/PTFE

 Sealing 2RS - double-sided, plastic, contact sealing. NBR elastomer, temperature resistance from -30o to +120oC, resistant to mineral oils, greases, gasoline

Locking rings - brass

Spacer sleeves - stainless steel 1.4305

Housing:

up to size 12: free-cutting steel:  [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13], turned

from size 14: heat-treatable steel: [DE C22, FR XC25, IT C21, SE 1450, GB 070M20,  US M1023], forged



Bearing liner: free-cutting steel:  [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13] with bonded PTFE layer.

Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished







Brand
FLURO
Symbol
GASW 16-2RS
Type
Fluro GASW - 2RS Series
Thread
M16
Type of thread
Male Right
Specification
D - external diameter of the rod head [mm /inch]
42 / 1.65"
W - width of the inner ring [mm /inch]
28 / 1.10"
T - width of the outer ring [mm /inch]
15 / 0.59"
L- Lenght [mm /inch]
66 / 2.60"
GM - Thread length [mm /inch]
40 / 1.57"
Deflection angle
24°
Maximum static load [kN / lbs]
32.0 / 7193.89
Maximum dynamic load [kN / lbs]
52.5 / 11802.47
Weight
230 g / 0.507 lbs
