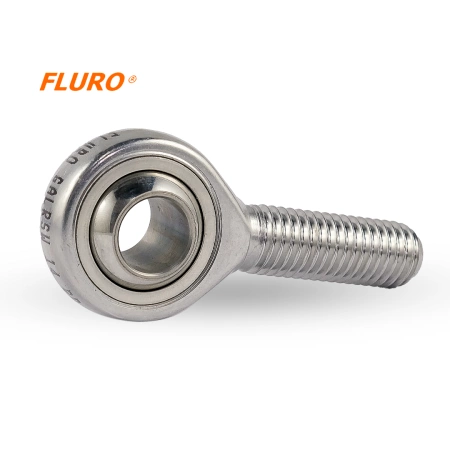

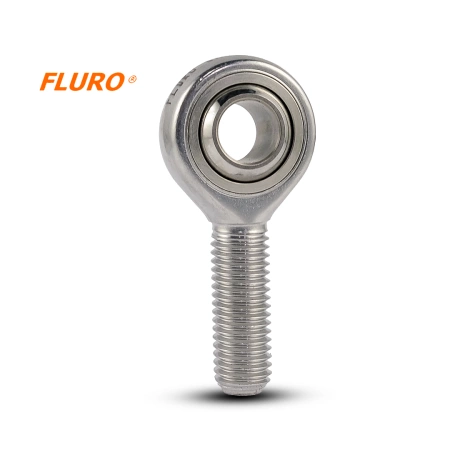

Tie rod end / tie rod end - uniball GARSW 40.RR FLURO - M42x2 right (male)
Tie rod end / tie rod end - uniball GARSW 40.RR FLURO - M42x2 right (male)
- GARSW RR Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
GARSW RR FLURO Rod End
GARSW Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
90 / 3.54"
W - width of the inner ring [mm /inch]
49 / 1.93"
T - width of the outer ring [mm /inch]
35 / 1.38"
L- Lenght [mm /inch]
142 / 5.59"
GM - Thread length [mm /inch]
78 / 3.07"
Deflection angle
32°
Maximum static load [kN / lbs]
235.0 / 52830.10
Maximum dynamic load [kN / lbs]
286.0 / 64295.36
Weight
2570 g / 5.666 lbs
