Rod End / Tie Rod End - Uniball GISW 30 FLURO - M30x2 Right (Female)
Rod End / Tie Rod End - Uniball GISW 30 FLURO - M30x2 Right (Female)
Rod End / Tie Rod End - Uniball GISW 30 FLURO - M30x2 Right (Female)
Rod End / Tie Rod End - Uniball GISW 30 FLURO - M30x2 Right (Female)

Rod End / Tie Rod End - Uniball GISW 30 FLURO - M30x2 Right (Female)

+ Add to compareAdd to shopping list
  • GISW Series - Rod end with internal thread made of free-cutting steel or heat-treated steel, zinc-plated, with PTFE liner (maintenance-free). For use under dynamic loads.

80,00 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

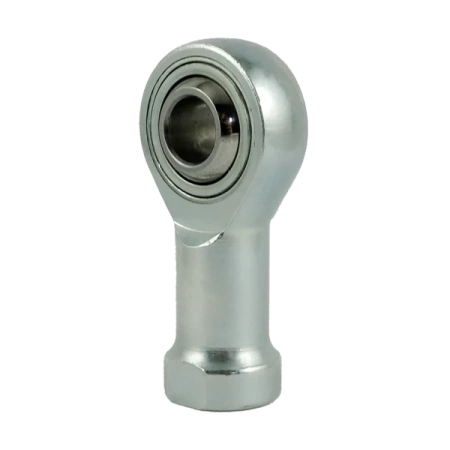

FLURO GISW Rod End



GISW Series - Rod end with internal thread made of free-cutting steel or heat-treated steel, zinc-plated, with PTFE liner (maintenance-free).

For use under dynamic loads. Dimensional series K - maintenance-free design.

Friction pair: steel/PTFE

Housing:

up to size 12 - free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 /UK 230M07 /12L 13 ] turned

from size 14 - heat-treated steel [ DE C22 / FR XC25 / IT C21 / SE 1450 /UK 070M20 / USA M1023 ] forged

size 50 - heat-treated steel [ DE C45 / FR 1C45 / IT C45 / SE 1650 / UK 080M46 / Aisi 1045 ] turned

Bearing bush - free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 /UK 230M07 /12L 13 ] with bonded PTFE layer

Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished

Brand
FLURO
Symbol
GISW 30
Type
Fluro GISW - Series
Thread
M30X2.0
Type of thread
Right Internal
Specification
D - external diameter of the rod head [mm /inch]
70 / 2.755"
W - width of the inner ring [mm /inch]
37 / 1.46"
T - width of the outer ring [mm /inch]
25 / 0.98"
L- Lenght [mm /inch]
110 / 4.33"
GM - Thread length [mm /inch]
51 / 2.01"
Deflection angle
34°
Maximum static load [kN / lbs]
82.0 / 18434.33
Maximum dynamic load [kN / lbs]
168 / 37767.90
Weight
1130 g / 2.491 lbs
