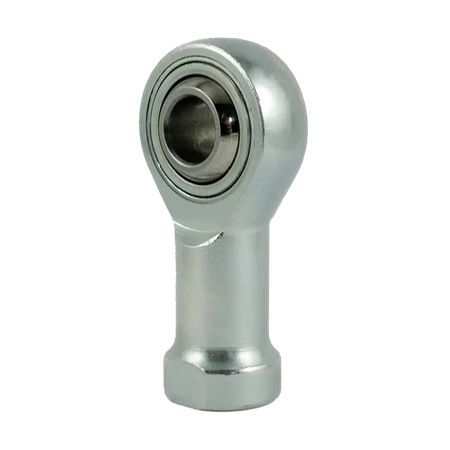

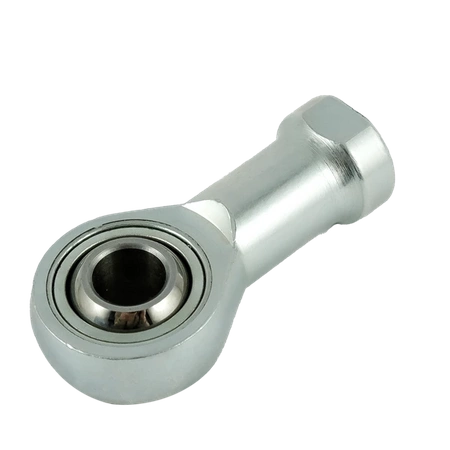

Rod End / Tie Rod End - Uniball GIRSW 40 RR FLURO - M42x2 Right (Female)
Rod End / Tie Rod End - Uniball GIRSW 40 RR FLURO - M42x2 Right (Female)
Rod End / Tie Rod End - Uniball GIRSW 40 RR FLURO - M42x2 Right (Female)
Rod End / Tie Rod End - Uniball GIRSW 40 RR FLURO - M42x2 Right (Female)

Rod End / Tie Rod End - Uniball GIRSW 40 RR FLURO - M42x2 Right (Female)

+ Add to compareAdd to shopping list
  • GIRSW RR Series - Rod End - all stainless steel components, with PTFE liner (maintenance-free). Designed for use under high dynamic tensile/compressive loads in corrosion-prone environments.

449,00 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

Rod End FLURO GIRSW RR



GIRSW RR Series - Rod End - all stainless steel components, with PTFE liner (maintenance-free).

Designed for use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional Series K - stainless steel, maintenance-free.

Friction Pair: NIRO / PTFE





Housing: stainless steel 1.4057 [DE X20CrNi172 / FR Z15CN16-02 / IT X16CrNi16 / SE 2321 / UK 431S29 / US Aisi 431] forged, polished from size 40 - turned

Bearing Bushing - special bronze CuSn8 with bonded PTFE layer

Inner Ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / USA Aisi 52100 ] hardened, ground, polished, hard chrome-plated on sliding surfaces.

Brand
FLURO
Symbol
GIRSW 40 RR
Type
Fluro GIRSW - Series
Thread
M42x2
Type of thread
Right Internal
Specification
D - external diameter of the rod head [mm /inch]
90 / 3.54"
W - width of the inner ring [mm /inch]
49 / 1.93"
T - width of the outer ring [mm /inch]
35 / 1.38"
L- Lenght [mm /inch]
142 / 5.59"
GM - Thread length [mm /inch]
60 / 2.36"
Deflection angle
32°
Maximum static load [kN / lbs]
235.0 / 52830.10
Maximum dynamic load [kN / lbs]
286.0 / 64295.36
Weight
2770 g / 6.107 lbs
