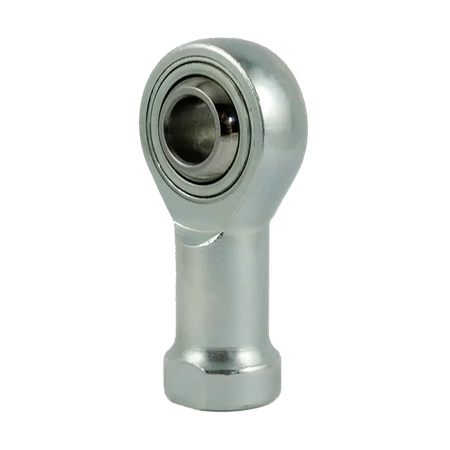

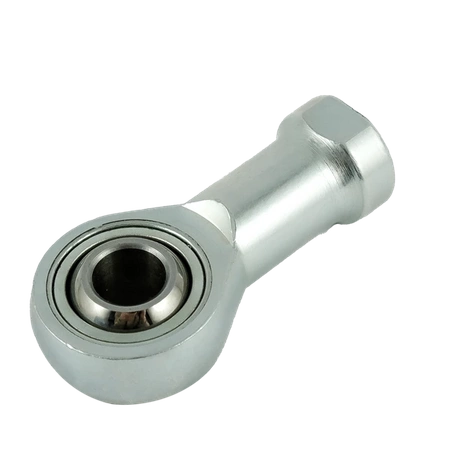

Rod end / tie rod end - uniball GILRSW 20 FLURO - M20x1.5 left-hand internal (female)
Rod end / tie rod end - uniball GILRSW 20 FLURO - M20x1.5 left-hand internal (female)
Rod end / tie rod end - uniball GILRSW 20 FLURO - M20x1.5 left-hand internal (female)
Rod end / tie rod end - uniball GILRSW 20 FLURO - M20x1.5 left-hand internal (female)

Rod end / tie rod end - uniball GILRSW 20 FLURO - M20x1.5 left-hand internal (female)

+ Add to compareAdd to shopping list
  • GIRSW Series – Rod end with internal thread made of stainless steel, with PTFE liner (maintenance-free). Suitable for high dynamic tensile/compressive loads in corrosion-prone environments.

75,30 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

FLURO GIRSW Rod End



GIRSW Series - Rod end with internal thread made of stainless steel, with PTFE liner (maintenance-free).

Suitable for high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.

Friction pair: chromed steel / PTFE





Housing: stainless steel 1.4057 [DE X20CrNi172 / FR Z15CN16-02 / IT X16CrNi16 / SE 2321 / UK 431S29 / US AISI 431], forged, polished; from size 40 - turned

Bearing bushing - special bronze CuSn8 with bonded PTFE layer

Inner ring - bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / US AISI 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces.

Brand
FLURO
Symbol
GILRSW 20
Type
Fluro GIRSW - Series
Thread
M20x1.5
Type of thread
Left Internal
Specification
D - external diameter of the rod head [mm /inch]
50 / 1.97"
W - width of the inner ring [mm /inch]
25 / 0.99"
T - width of the outer ring [mm /inch]
18 / 0.71"
L- Lenght [mm /inch]
77 / 3.03"
GM - Thread length [mm /inch]
33 / 1.30"
Deflection angle
28°
Maximum static load [kN / lbs]
83.0 / 18659.14
Maximum dynamic load [kN / lbs]
78.0 / 17535.10
Weight
415 g / 0.915 lbs
