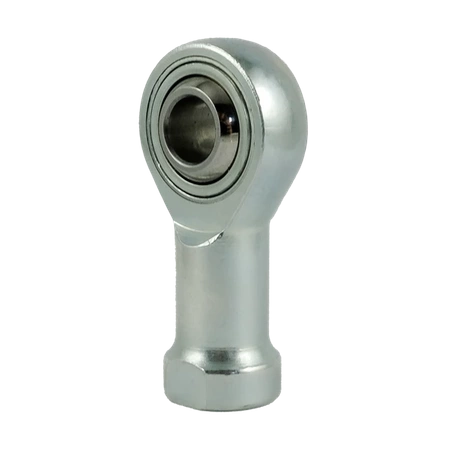

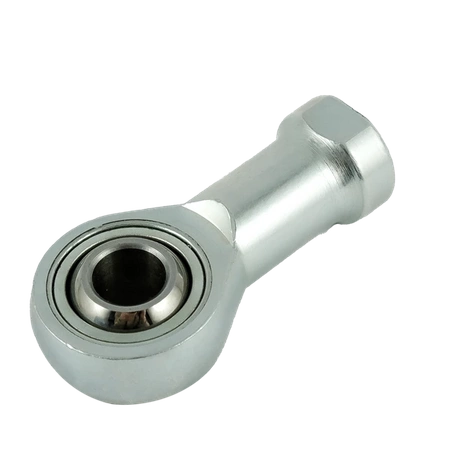

Rod end / tie rod end - uniball GILRSW 25 RR FLURO - M24x2 left-hand internal (female)
Rod end / tie rod end - uniball GILRSW 25 RR FLURO - M24x2 left-hand internal (female)
Rod end / tie rod end - uniball GILRSW 25 RR FLURO - M24x2 left-hand internal (female)
Rod end / tie rod end - uniball GILRSW 25 RR FLURO - M24x2 left-hand internal (female)

Rod end / tie rod end - uniball GILRSW 25 RR FLURO - M24x2 left-hand internal (female)

+ Add to compareAdd to shopping list
  • GIRSW RR Series - Rod End - all stainless steel components, with PTFE liner (maintenance-free). Designed for use under high dynamic tensile/compressive loads in corrosion-prone environments.

134,40 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

Rod End FLURO GIRSW RR



GIRSW RR Series - Rod End - all stainless steel components, with PTFE liner (maintenance-free).

Designed for use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional Series K - stainless steel, maintenance-free.

Friction Pair: NIRO / PTFE





Housing: stainless steel 1.4057 [DE X20CrNi172 / FR Z15CN16-02 / IT X16CrNi16 / SE 2321 / UK 431S29 / US AISI 431], forged, polished; from size 40 - turned

Bearing bushing - special bronze CuSn8 with bonded PTFE layer

Inner ring - bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / US AISI 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces.

Brand
FLURO
Symbol
GILRSW 25 RR
Type
Fluro GIRSW - Series
Thread
M24x2.0
Type of thread
Left Internal
Specification
D - external diameter of the rod head [mm /inch]
60 / 2.36"
W - width of the inner ring [mm /inch]
31 / 1.22"
T - width of the outer ring [mm /inch]
22 / 0.87"
L- Lenght [mm /inch]
94 / 3.70"
GM - Thread length [mm /inch]
42 / 1.65"
Deflection angle
30°
Maximum static load [kN / lbs]
118.0 / 26527.46
Maximum dynamic load [kN / lbs]
122.0 / 27426.69
Weight
750 g / 1.653 lbs
