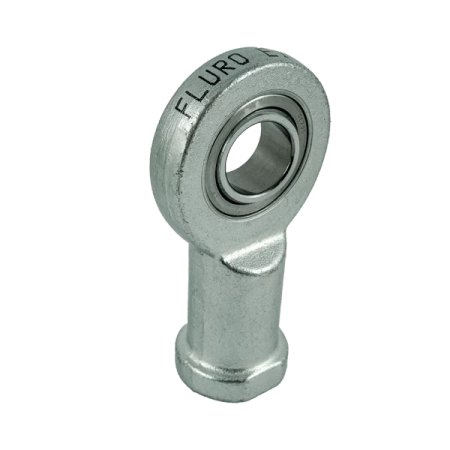

Rod end / tie rod end - uniball EI 12 D-NIRO FLURO - M12 right-hand internal (female)
Rod end / tie rod end - uniball EI 12 D-NIRO FLURO - M12 right-hand internal (female)
- Series EI..D-NIRO – stainless steel rod end with internal thread, equipped with maintenance-free GE..EC-NIRO spherical plain bearing.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
FLURO Rod End EI - NIRO
Series EI – rod end, dimensional series E with internal thread, made of stainless steel, with maintenance-free GE..EC-NIRO spherical plain bearing.
For use in applications involving high, one-sided loads and limited installation width in corrosion-prone environments.
Dimensional series E – maintenance-free, stainless steel.
Sliding contact pair: steel / PTFE
Housing: sizes 6 - 40 stainless steel 1.4301, forged, polished
from size 45 stainless steel 1.4301, turned
from size 50 stainless steel 1.4571, turned
Bearing – maintenance-free GE..EC-NIRO spherical plain bearing made of stainless steel
Specification
D - external diameter of the rod head [mm /inch]
34 / 1.34"
W - width of the inner ring [mm /inch]
10 / 0.39"
T - width of the outer ring [mm /inch]
8 / 0.31"
L- Lenght [mm /inch]
50 / 1.97"
GM - Thread length [mm /inch]
23 / 0.91"
Deflection angle
22°
Maximum static load [kN / lbs]
31.0 / 6969.08
Maximum dynamic load [kN / lbs]
11.5 / 2585.30
Weight
96 g / 0.212 lbs
