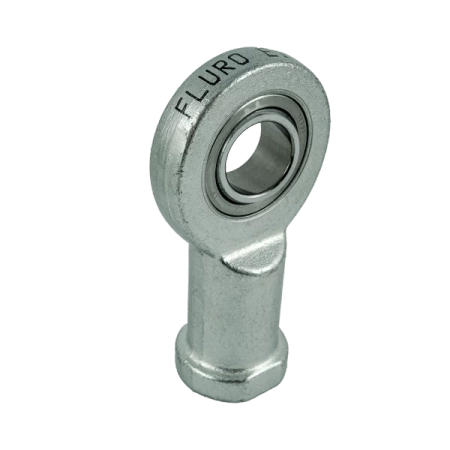

Rod end / linkage head - uniball EIL 6 D FLURO - M6 left-hand internal (female)
Rod end / linkage head - uniball EIL 6 D FLURO - M6 left-hand internal (female)
- EI series - rod end head, dimensional series E with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, with maintenance-free spherical bearing.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
FLURO EI Rod End
EI Series - rod end, dimensional series E with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, with a maintenance-free spherical bearing.
For use in high, unidirectional loads and limited installation width.
Dimensional series E - maintenance-free.
Friction pair: steel / PTFE
Housing:
up to size 10 free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned
from size 12 heat-treatable steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged
Bearing - maintenance-free steel / PTFE GE...EC bearing
Specification
D - external diameter of the rod head [mm /inch]
21 / 0.83"
W - width of the inner ring [mm /inch]
6 / 0.24"
T - width of the outer ring [mm /inch]
4.4 / 0.17"
L- Lenght [mm /inch]
30 / 1.18"
GM - Thread length [mm /inch]
12 / 0.47"
Deflection angle
26°
Maximum static load [kN / lbs]
10.3 / 2315.53
Maximum dynamic load [kN / lbs]
3.6 / 809.31
Weight
21 g / 0.046 lbs
