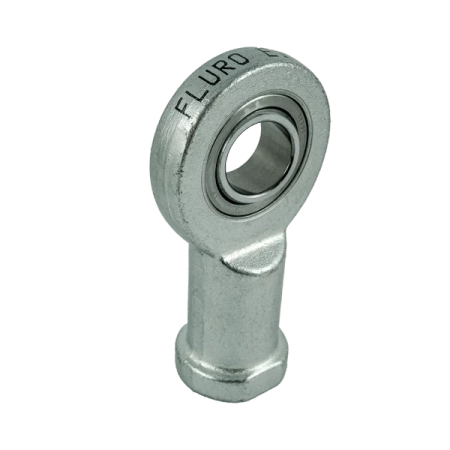

Rod end / linkage head - uniball EIL 6 FLURO - M6 left-hand internal (female)

Rod end / linkage head - uniball EIL 6 FLURO - M6 left-hand internal (female)

+ Add to compareAdd to shopping list
  • Series EI – rod end, dimensional series E with internal thread, made of free-cutting steel or heat-treatable steel, zinc-plated, with a steel/steel spherical plain bearing (requires lubrication).

11,80 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery from 16,61 EUR
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

FLURO EI Rod End



EI Series – rod end, dimension series E with internal thread, made of free-cutting steel or heat-treatable steel, zinc-plated, with steel/steel spherical bearing (requires lubrication).

For use under high, variable loads and limited installation width.

Dimension series E – requiring maintenance

Sliding pair: steel / steel



Housing:

up to size 10 free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned

from size 12 heat-treatable steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged

Bearing – steel/steel bearing GE...E requiring lubrication

Lubrication: up to size 17 not lubricable

from size 20 with hydraulic grease nipple DIN 71412





Brand
FLURO
Symbol
EIL 6
Type
Fluro EI Series
Thread
M6
Type of thread
Left Internal
Specification
D - external diameter of the rod head [mm /inch]
21 / 0.83"
W - width of the inner ring [mm /inch]
6 / 0.24"
T - width of the outer ring [mm /inch]
4.4 / 0.17"
L- Lenght [mm /inch]
30 / 1.18"
GM - Thread length [mm /inch]
12 / 0.47"
Deflection angle
26°
Maximum static load [kN / lbs]
10.3 / 2315.53
Maximum dynamic load [kN / lbs]
3.6 / 809.31
Weight
21 g / 0.046 lbs
