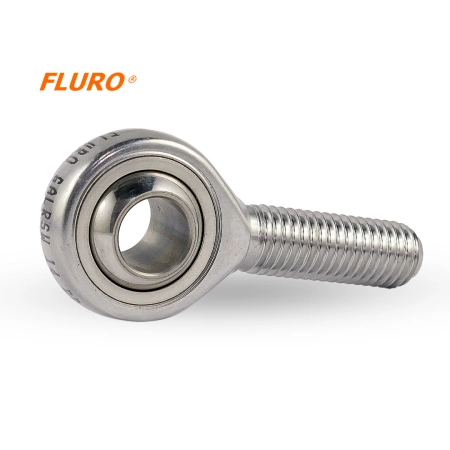

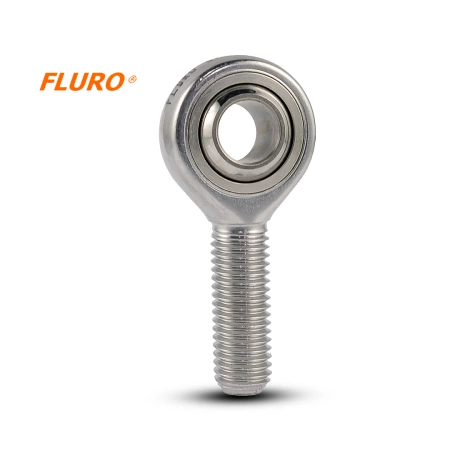

GALRSW 22 R FLURO Rod End - M22x1.5
GARSW Series - Rod end with external thread with a stainless steel inner ring, with PTFE insert (maintenance-free). Designed for use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size 40 made of stainless steel 1.4057, turned.
Bearing liner: special bronze CuSn8 with glued PTFE insert
Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US AISI 52100], hardened, ground, polished, hard chrome-plated on sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
54 / 19,69'
W - width of the inner ring [mm /inch]
28 / 1.10"
T - width of the outer ring [mm /inch]
20 / 0.79"
L- Lenght [mm /inch]
84 / 3.31"
GM - Thread length [mm /inch]
51 / 2.01"
Deflection angle
30°
Maximum static load [kN / lbs]
100 / 22480.89
Maximum dynamic load [kN / lbs]
97.0 / 21806.47
Weight
443 g / 0,98 lbs
