Rod end / linkage head – uniball EA 16 D FLURO – M16 right-hand external (male) thread.
Rod end / linkage head – uniball EA 16 D FLURO – M16 right-hand external (male) thread.
Rod end / linkage head – uniball EA 16 D FLURO – M16 right-hand external (male) thread.
Rod end / linkage head – uniball EA 16 D FLURO – M16 right-hand external (male) thread.
Rod end / linkage head – uniball EA 16 D FLURO – M16 right-hand external (male) thread.
Rod end / linkage head – uniball EA 16 D FLURO – M16 right-hand external (male) thread.

Rod end / linkage head – uniball EA 16 D FLURO – M16 right-hand external (male) thread.

+ Add to compareAdd to shopping list
  • EA series – rod end, dimension series E with external thread, made of free-cutting steel or heat-treatable steel, zinc-plated, with maintenance-free spherical bearing.

33,40 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

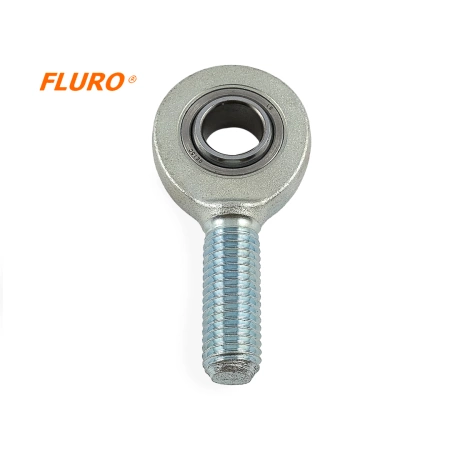

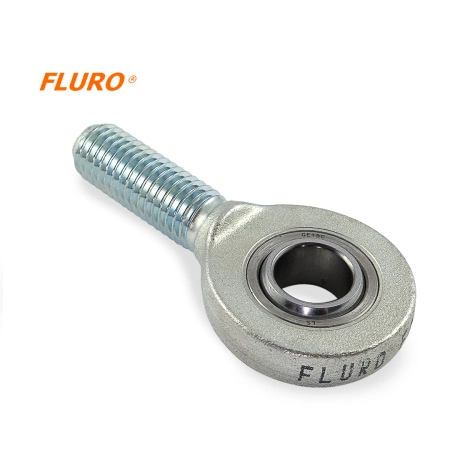

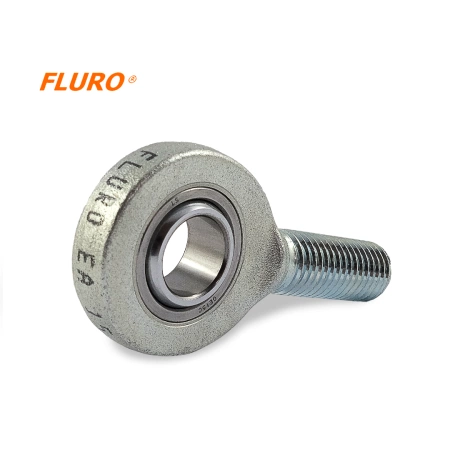

FLURO EA Rod End

EA Series - rod end, dimension series E with external thread, made of free-cutting steel or heat-treatable steel, zinc-plated, with maintenance-free spherical plain bearing.

For use under high, unidirectional loads and limited installation width.

Dimension series E - maintenance-free.

Sliding pair: steel / PTFE

Housing:

up to size 10: free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned

from size 12: heat-treatable steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged

Bearing - maintenance-free steel/PTFE bearing GE...EC

Brand
FLURO
Symbol
EA 16 D
Type
Fluro EA Series
Thread
M16
Type of thread
Male Right
Specification
D - external diameter of the rod head [mm /inch]
46 / 1.81"
W - width of the inner ring [mm /inch]
14 / 0.55"
T - width of the outer ring [mm /inch]
11 / 0.43"
L- Lenght [mm /inch]
69 / 2.72"
GM - Thread length [mm /inch]
36 / 1.42"
Deflection angle
20°
Maximum static load [kN / lbs]
54.0 / 12139.68
Maximum dynamic load [kN / lbs]
22.5 / 5058.20
Weight
190 g / 0.419 lbs
