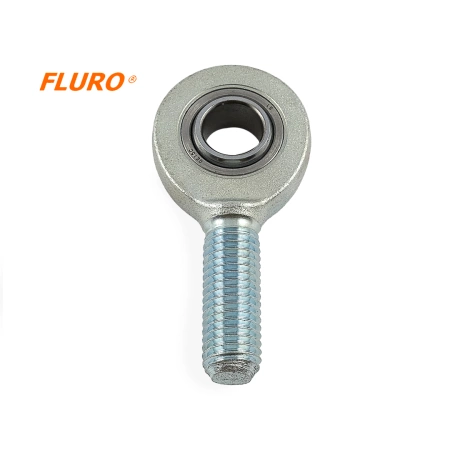

Rod end / linkage head – uniball EA 40 D-NIRO FLURO – M39x3 right-hand external (male) thread.
Rod end / linkage head – uniball EA 40 D-NIRO FLURO – M39x3 right-hand external (male) thread.
Rod end / linkage head – uniball EA 40 D-NIRO FLURO – M39x3 right-hand external (male) thread.
Rod end / linkage head – uniball EA 40 D-NIRO FLURO – M39x3 right-hand external (male) thread.
Rod end / linkage head – uniball EA 40 D-NIRO FLURO – M39x3 right-hand external (male) thread.
Rod end / linkage head – uniball EA 40 D-NIRO FLURO – M39x3 right-hand external (male) thread.

Rod end / linkage head – uniball EA 40 D-NIRO FLURO – M39x3 right-hand external (male) thread.

+ Add to compareAdd to shopping list
  • Series EA..D-NIRO – stainless steel rod end with external thread, equipped with GE...EC-NIRO spherical plain bearing. Designed for applications involving high, one-sided loads and limited installation width in corrosion-prone environments.

238,60 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

FLURO Rod End EA..D-NIRO



Series EA..D-NIRO – stainless steel rod end with external thread, equipped with GE...EC-NIRO spherical plain bearing. Designed for applications involving high, one-sided loads and limited installation width in corrosion-prone environments.

Dimensional series E – stainless steel, maintenance-free.

Sliding contact pair: steel / PTFE





Housing: sizes 6 - 10 stainless steel 1.4301, forged, polished

from size 45 stainless steel 1.4301, turned

from size 50 stainless steel 1.4057, turned

Bearing – maintenance-free GE..EC-NIRO spherical plain bearing made of stainless steel



1) available on request

Brand
FLURO
Symbol
EA 40 D-NIRO
Type
Fluro EA Series
Thread
M39x3
Type of thread
Male Right
Specification
D - external diameter of the rod head [mm /inch]
92 / 3.62"
W - width of the inner ring [mm /inch]
28 / 1.10"
T - width of the outer ring [mm /inch]
23 / 0.91"
L- Lenght [mm /inch]
150 / 5.91"
GM - Thread length [mm /inch]
86 / 3.39"
Deflection angle
14°
Maximum static load [kN / lbs]
135.0 / 30349.24
Maximum dynamic load [kN / lbs]
190.0 / 42713.70
Weight
1800 g / 3.968 lbs
