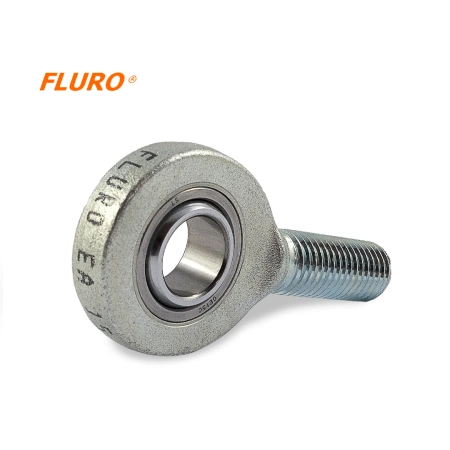

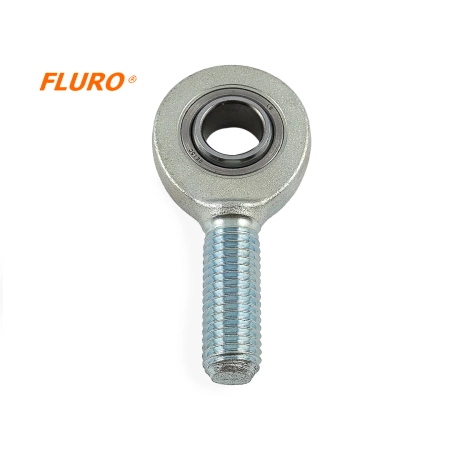

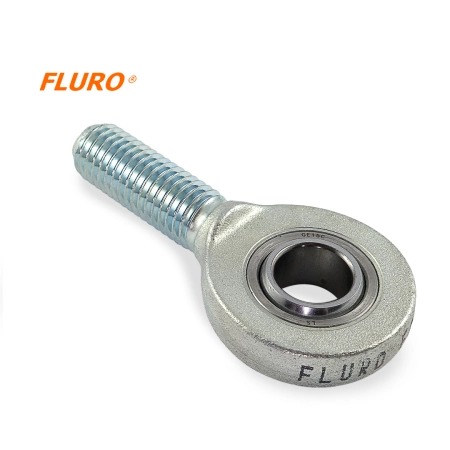

Rod end / linkage head - uniball EAL 15 FLURO - M14 left-hand external (male)
Rod end / linkage head - uniball EAL 15 FLURO - M14 left-hand external (male)
Rod end / linkage head - uniball EAL 15 FLURO - M14 left-hand external (male)
Rod end / linkage head - uniball EAL 15 FLURO - M14 left-hand external (male)
Rod end / linkage head - uniball EAL 15 FLURO - M14 left-hand external (male)
Rod end / linkage head - uniball EAL 15 FLURO - M14 left-hand external (male)

Rod end / linkage head - uniball EAL 15 FLURO - M14 left-hand external (male)

+ Add to compareAdd to shopping list
  • EA series – rod head, dimensional series E with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, with steel/steel spherical plain bearing (requires lubrication).

20,40 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

FLURO EA Rod End

EA Series – rod end, dimensional series E with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, with steel/steel spherical plain bearing.

For use under high, variable loads and in narrow installation widths.

Dimensional series E – requires lubrication.

Friction pair: steel / steel

Housing:

up to size 10 free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned

from size 12 heat-treatable steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged

Bearing – lubrication-required bearing steel / PTFE GE...EC

Lubrication – up to size 17 no lubrication option, from size 20 with hydraulic grease fitting DIN 71412

Brand
FLURO
Symbol
EAL 15
Type
Fluro EA Series
Thread
M14
Type of thread
Male left
Specification
D - external diameter of the rod head [mm /inch]
40 / 1.57"
W - width of the inner ring [mm /inch]
12 / 0.47"
T - width of the outer ring [mm /inch]
10 / 0.39"
L- Lenght [mm /inch]
63 / 2.48"
GM - Thread length [mm /inch]
34 / 1.34"
Deflection angle
16°
Maximum static load [kN / lbs]
39.5 / 8879.95
Maximum dynamic load [kN / lbs]
17.0 / 3821.75
Weight
140 g / 0.307 lbs
