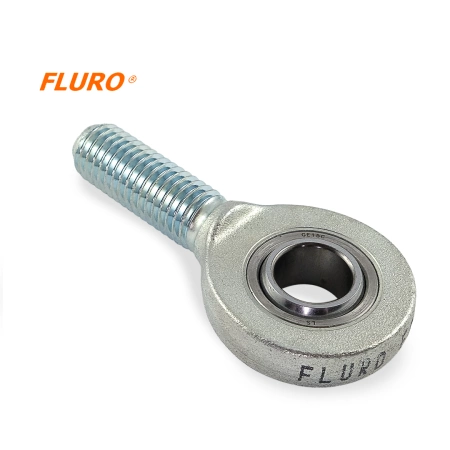

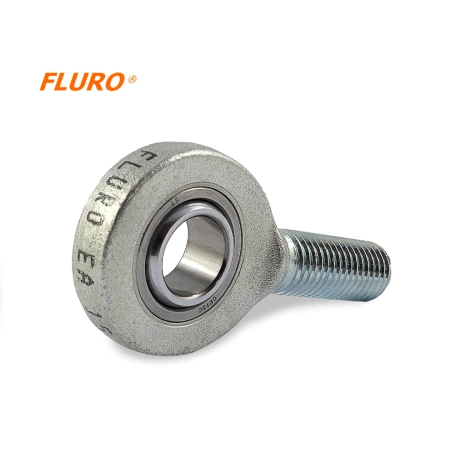

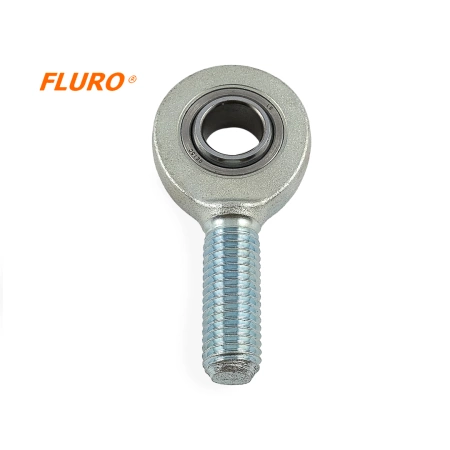

Rod end / linkage head - uniball EAL 10 D-NIRO FLURO - M10 left-hand external (male)
Rod end / linkage head - uniball EAL 10 D-NIRO FLURO - M10 left-hand external (male)
- Series EA..D-NIRO – stainless steel rod end with external thread, equipped with GE...EC-NIRO spherical plain bearing. Designed for applications involving high, one-sided loads and limited installation width in corrosion-prone environments.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
FLURO Rod End EA..D-NIRO
Series EA..D-NIRO – stainless steel rod end with external thread, equipped with GE...EC-NIRO spherical plain bearing. Designed for applications involving high, one-sided loads and limited installation width in corrosion-prone environments.
Dimensional series E – stainless steel, maintenance-free.
Sliding contact pair: steel / PTFE
Housing: sizes 6 - 10 stainless steel 1.4301, forged, polished
from size 45 stainless steel 1.4301, turned
from size 50 stainless steel 1.4057, turned
Bearing – maintenance-free GE..EC-NIRO spherical plain bearing made of stainless steel
1) available on request
Specification
D - external diameter of the rod head [mm /inch]
29 / 1.14"
W - width of the inner ring [mm /inch]
9 / 0.35"
T - width of the outer ring [mm /inch]
7 / 0.28"
L- Lenght [mm /inch]
48 / 1.89"
GM - Thread length [mm /inch]
26 / 1.02"
Deflection angle
24°
Maximum static load [kN / lbs]
11.6 / 2607.78
Maximum dynamic load [kN / lbs]
10.0 / 2248.09
Weight
50 g / 0.11 lbs
