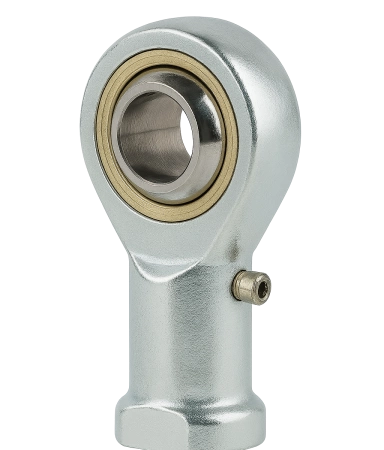

Rod end / linkage head - uniball GI 14 FLURO - M14 right-hand internal (female)

Rod end / linkage head - uniball GI 14 FLURO - M14 right-hand internal (female)

+ Add to compareAdd to shopping list
  • GI Series – Rod end with internal thread, made of free-cutting steel or heat-treatable steel, zinc-plated, relubricable via concave ball-type grease nipple. Particularly suitable for axial loads.

22,80 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is available in very small quantities
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is available in very small quantities
Shipment
Free and fast delivery
14 days for easy returns
Find out in which store you can check the product and buy it right away
Rod end / linkage head - uniball GI 14 FLURO - M14 right-hand internal (female)
Rod end / linkage head - uniball GI 14 FLURO - M14 right-hand internal (female)
uniwersalny
Safe shopping
After paying for this item you will be awarded pts.

FLURO GI Rod End



GI Series – Rod end with internal thread, made of free-cutting steel or heat-treatable steel, zinc-plated, relubricable via concave ball-type grease nipple.

Particularly suitable for axial loads.

Sliding pair: steel / brass.





Housing:

up to size 12 – free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 / UK 230M07 / 12L13 ] turned

from size 14 – heat-treatable steel [ DE C22 / FR XC25 / IT C21 / SE 1450 / UK 070M20 / USA M1023 ] forged

Bearing shell – special brass CuZn40Al1

Inner ring – bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100 ] hardened, ground, polished



Brand
FLURO
Symbol
GI 14
Type
Fluro GI - Series
Thread
M14
Type of thread
Right Internal
Specification
D - external diameter of the rod head [mm /inch]
36 / 1.42"
W - width of the inner ring [mm /inch]
19 / 0.75"
T - width of the outer ring [mm /inch]
13.5 / 0.53"
L- Lenght [mm /inch]
57 / 2.24"
GM - Thread length [mm /inch]
25 / 0.98"
Deflection angle
32°
Maximum static load [kN / lbs]
24.5 / 5507.82
Maximum dynamic load [kN / lbs]
13.0 / 2922.52
Weight
170 g / 0.375 lbs
