Rod end / linkage head - uniball GIL 6 FLURO - M6 left-hand internal (female)

Rod end / linkage head - uniball GIL 6 FLURO - M6 left-hand internal (female)

+ Add to compareAdd to shopping list
  • GI Series – Rod end with internal thread, made of free-cutting steel or heat-treatable steel, zinc-plated, relubricable via concave ball-type grease nipple. Particularly suitable for axial loads.

9,50 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery from 16,61 EUR
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

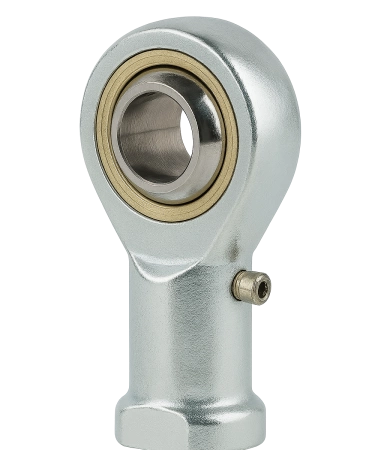

FLURO GI Rod End



GI Series – Rod end with internal thread, made of free-cutting steel or heat-treatable steel, zinc-plated, relubricable via concave ball-type grease nipple.

Particularly suitable for axial loads.

Sliding pair: steel / brass.





Housing:

up to size 12 – free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 / UK 230M07 / 12L13 ] turned

from size 14 – heat-treatable steel [ DE C22 / FR XC25 / IT C21 / SE 1450 / UK 070M20 / USA M1023 ] forged

Bearing shell – special brass CuZn40Al1

Inner ring – bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100 ] hardened, ground, polished



Brand
FLURO
Symbol
GIL 6
Type
Fluro GI - Series
Thread
M6
Type of thread
Left Internal
Specification
D - external diameter of the rod head [mm /inch]
20 / 0.79"
W - width of the inner ring [mm /inch]
9 / 0.35"
T - width of the outer ring [mm /inch]
6.75 / 0.27"
L- Lenght [mm /inch]
30 / 1.18"
GM - Thread length [mm /inch]
12 / 0.47"
Deflection angle
26°
Maximum static load [kN / lbs]
11.9 / 2675.23
Maximum dynamic load [kN / lbs]
3.2 / 719.39
Weight
27 g / 0.060 lbs
