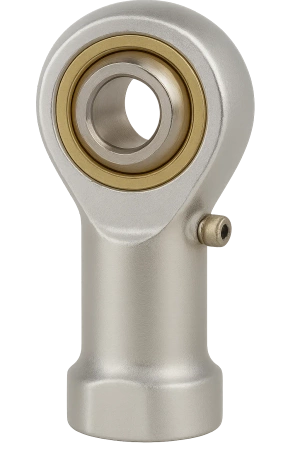

Rod end / linkage head - uniball GIRS 22 R FLURO - M22x1.5 right-hand internal (female)
Rod end / linkage head - uniball GIRS 22 R FLURO - M22x1.5 right-hand internal (female)
- GIRS R Series - Rod end with a stainless steel housing and inner ring. For use in corrosion-prone areas.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Rod End FLURO GIRS
GIRS R Series - Rod end with internal thread, stainless steel housing, and inner ring, lubricated through a concave spherical grease fitting.
For use in corrosion-prone areas.
Sliding pair: chrome-plated steel / steel.
Housing: stainless steel 1.4057, forged, polished; size 40 made of stainless steel 1.4057, machined.
Bearing bush - special bronze CuSn8.
Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished, hard chrome-plated on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
54 / 19,69'
W - width of the inner ring [mm /inch]
28 / 1.10"
T - width of the outer ring [mm /inch]
20 / 0.79"
L- Lenght [mm /inch]
84 / 3.31"
GM - Thread length [mm /inch]
37 / 1.46"
Deflection angle
30°
Maximum static load [kN / lbs]
100 / 22480.89
Maximum dynamic load [kN / lbs]
38.0 / 8542.74
Weight
540 g / 1.019 lbs
