Rod end / linkage head - uniball GIRS 8 R FLURO - M8 right-hand internal (female)

Rod end / linkage head - uniball GIRS 8 R FLURO - M8 right-hand internal (female)

+ Add to compareAdd to shopping list
  • GIRS R Series - Rod end with a stainless steel housing and inner ring. For use in corrosion-prone areas.

33,50 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

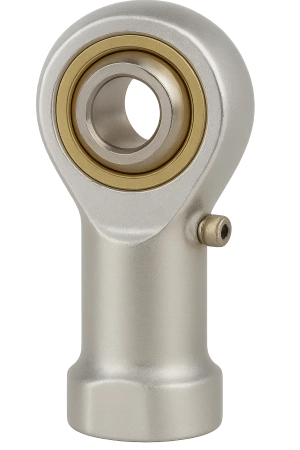

Rod End FLURO GIRS



GIRS R Series - Rod end with internal thread, stainless steel housing, and inner ring, lubricated through a concave spherical grease fitting.

For use in corrosion-prone areas.

Sliding pair: chrome-plated steel / steel.





Housing: stainless steel 1.4057, forged, polished; size 40 made of stainless steel 1.4057, machined.

Bearing bush - special bronze CuSn8.

Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished, hard chrome-plated on sliding surfaces.



Brand
FLURO
Symbol
GIRS 8.R
Type
Fluro GIRS - Series
Thread
M8
Type of thread
Right Internal
Specification
D - external diameter of the rod head [mm /inch]
24 / 0.95"
W - width of the inner ring [mm /inch]
12 / 0.47"
T - width of the outer ring [mm /inch]
9.0 / 0.35"
L- Lenght [mm /inch]
36 / 1.42"
GM - Thread length [mm /inch]
16 / 0.63"
Deflection angle
28°
Maximum static load [kN / lbs]
20.7 / 4653.55
Maximum dynamic load [kN / lbs]
7.1 / 1596.14
Weight
46 g / 0.101 lbs
