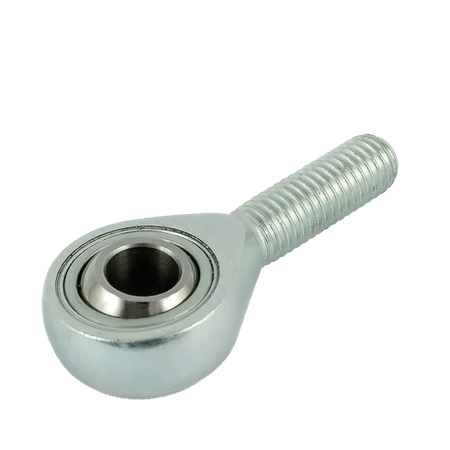

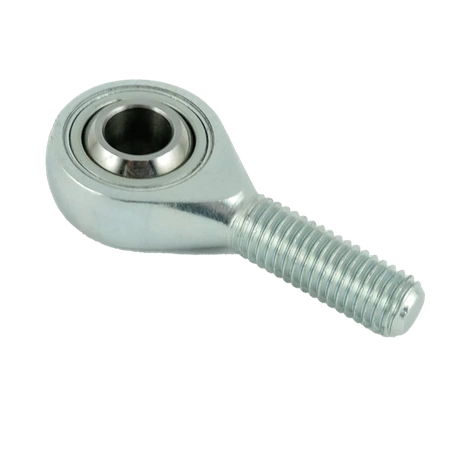

Rod end / rod head - uniball GALS 16x1.5 FLURO - M16x1.5 left external (male)
Rod end / rod head - uniball GALS 16x1.5 FLURO - M16x1.5 left external (male)
Rod end / rod head - uniball GALS 16x1.5 FLURO - M16x1.5 left external (male)
Rod end / rod head - uniball GALS 16x1.5 FLURO - M16x1.5 left external (male)

Rod end / rod head - uniball GALS 16x1.5 FLURO - M16x1.5 left external (male)

+ Add to compareAdd to shopping list
  • Rod end / rod head - uniball GALS 16x1.5 FLURO - M16x1.5 left external (male)

32,80 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

GALS 16x1.5 FLURO rod end - M16x1.5





GAS Series - Rod end with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated through a concave spherical grease nipple.

Particularly suitable for higher rotational speeds. Dimensional series K - for demanding applications.

Friction pair - steel/bronze





Housing:

up to size 12: free-cutting steel:  [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L13], turned

from size 14: heat-treatable steel: [DE C22, FR XC25, IT C21, SE 1450, GB 070M20,  US M1023], forged

size 50: heat-treatable steel: [DE C45, FR 1C45, IT C45, SE 1650, GB 080M46, US Aisi 1045], forged



Bearing bush: special bronze CuSn8

Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished



1) without additional lubrication

Brand
FLURO
Symbol
GALS 16x1,5
Type
Fluro GAS - Series
Thread
M16x1.5
Type of thread
Male left
Specification
D - external diameter of the rod head [mm /inch]
42 / 1.65"
W - width of the inner ring [mm /inch]
21 / 0.83"
T - width of the outer ring [mm /inch]
15 / 0.59"
L- Lenght [mm /inch]
66 / 2.60"
GM - Thread length [mm /inch]
40 / 1.57"
Deflection angle
30°
Maximum static load [kN / lbs]
32.0 / 7193.89
Maximum dynamic load [kN / lbs]
21.5 / 4833.39
Weight
189 g / 0,41667 lbs
