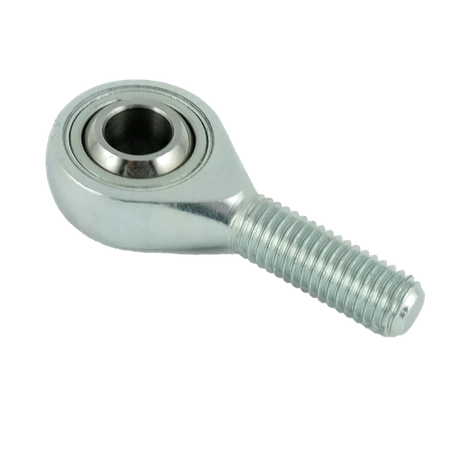

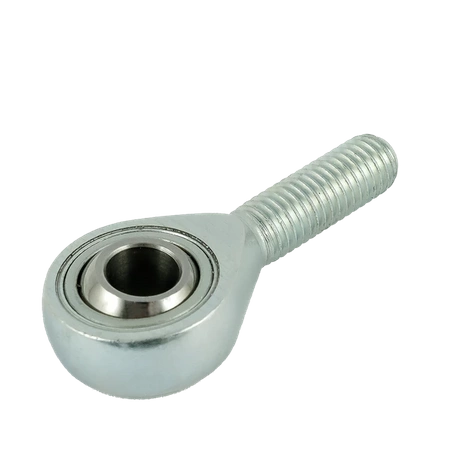

Rod end / linkage head - uniball GAL 12 FLURO - M12 left-hand external (male)
Rod end / linkage head - uniball GAL 12 FLURO - M12 left-hand external (male)
Rod end / linkage head - uniball GAL 12 FLURO - M12 left-hand external (male)
Rod end / linkage head - uniball GAL 12 FLURO - M12 left-hand external (male)

Rod end / linkage head - uniball GAL 12 FLURO - M12 left-hand external (male)

+ Add to compareAdd to shopping list
  • Rod end / linkage head - uniball GAL 12 FLURO - M12 left-hand external (male)

19,80 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

Rod End GAL 12 FLURO - M12





GA Series - Rod end with external thread made of free-machining steel or heat-treatable steel, zinc-plated, lubricated through a concave ball-shaped grease fitting.

Particularly suitable for axial loads. Dimensional series K - standard.

Friction Pair - steel/bronze





Housing:

up to size 12: free-machining steel:  [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13], turned

from size 14: heat-treatable steel: [DE C22, FR XC25, IT C21, SE 1450, GB 070M20,  US M1023], forged



Bearing bush: special brass CuZn40Al1

Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished





Brand
FLURO
Symbol
GAL 12
Type
Fluro GA - Series
Thread
M12
Type of thread
Male left
Specification
D - external diameter of the rod head [mm /inch]
32 / 1.26"
W - width of the inner ring [mm /inch]
16 / 0.63"
T - width of the outer ring [mm /inch]
12 / 0.47"
L- Lenght [mm /inch]
54 / 2.13"
GM - Thread length [mm /inch]
32 / 1.26"
Deflection angle
26°
Maximum static load [kN / lbs]
25.5 / 5732.63
Maximum dynamic load [kN / lbs]
10.0 / 2248.09
Weight
87g / 0.19180lbs
