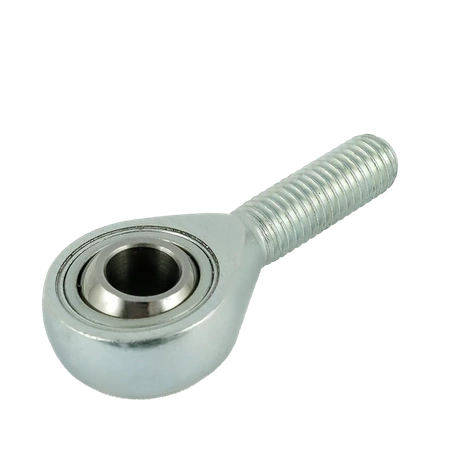

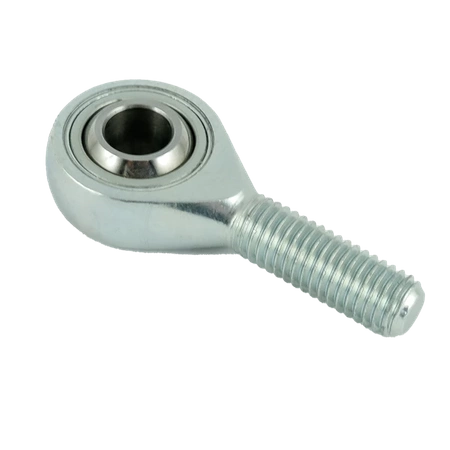

Rod end / linkage head – uniball GAO 8 FLURO – M8 right-hand external (male)
Rod end / linkage head – uniball GAO 8 FLURO – M8 right-hand external (male)
- GAO Series – Rod end with external thread made of free-machining steel or heat-treatable steel, zinc-plated, without bearing bush. Dimensional series K – steel/steel.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Rod End GAO FLURO
GAO Series – Rod end with external thread made of free-machining steel or heat-treatable steel, zinc-plated, without bearing bush.
Dimensional series K – steel/steel.
Housing:
up to size 12: free-machining steel: [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13], turned
from size 14: heat-treatable steel: [DE C22, FR XC25, IT C21, SE 1450, GB 070M20, US M1023], forged
Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
24 / 0.95"
W - width of the inner ring [mm /inch]
12 / 0.47"
T - width of the outer ring [mm /inch]
9 / 0.35"
L- Lenght [mm /inch]
42 / 1.65"
GM - Thread length [mm /inch]
25 / 0.98"
Deflection angle
28°
Maximum static load [kN / lbs]
11.0 / 2472.90
Maximum dynamic load [kN / lbs]
4.6 / 1034.12
Weight
33 g / 0.073 lbs
