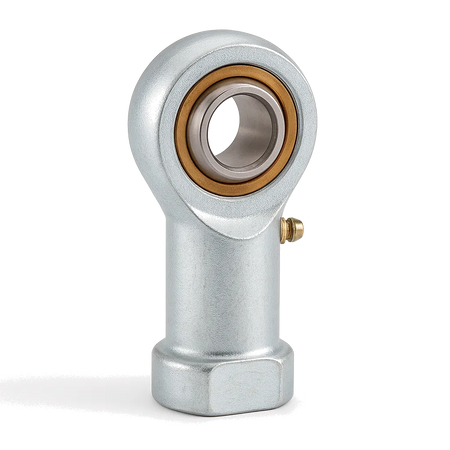

Rod end / linkage head - uniball GIXS 30 FLURO - M30x2 right-hand internal (female)

Rod end / linkage head - uniball GIXS 30 FLURO - M30x2 right-hand internal (female)

+ Add to compareAdd to shopping list
  • GIXS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via a concave spherical grease fitting. Suitable for use under high tensile and compressive loads

100,30 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

FLURO GIXS Rod End



GIXS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via concave spherical grease fitting.

For use under high tensile / compressive loads.

Sliding pair: steel / bronze.





Housing: heat-treatable steel 1.7225 [DE 42CrMo4 / FR 42CrMo4 / IT 42CrMo4 / SE 2244 / UK 708M40 / USA AISI 4140], forged

Bearing liner – special bronze CuSn8

Inner ring – bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100], hardened, ground, polished



Brand
FLURO
Symbol
GIXS 30
Type
Fluro GIXS - Series
Thread
M30X2.0
Type of thread
Right Internal
Specification
D - external diameter of the rod head [mm /inch]
70 / 2.755"
W - width of the inner ring [mm /inch]
37 / 1.46"
T - width of the outer ring [mm /inch]
25 / 0.98"
L- Lenght [mm /inch]
110 / 4.33"
GM - Thread length [mm /inch]
51 / 2.01"
Deflection angle
34°
Maximum static load [kN / lbs]
184.0 / 41364.85
Maximum dynamic load [kN / lbs]
64.0 / 14387.77
Weight
1130 g / 2.491 lbs
