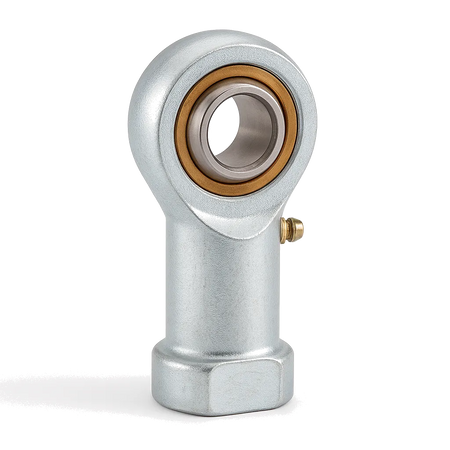

Rod end / linkage head - uniball GIS 10 FLURO - M10x1.25 right-hand internal (female)

Rod end / linkage head - uniball GIS 10 FLURO - M10x1.25 right-hand internal (female)

+ Add to compareAdd to shopping list
  • GIS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via concave spherical grease fitting. Designed for use at higher rotational speeds.

18,70 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

FLURO GIS Rod End



GIS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via concave spherical grease fitting.

For use at higher rotational speeds.

Sliding pair: steel / bronze.





Housing:

up to size 12 – free-cutting steel [DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 / UK 230M07 / 12L 13], turned

from size 14 – heat-treatable steel [DE C22 / FR XC25 / IT C21 / SE 1450 / UK 070M20 / USA M1023], forged

size 50 – heat-treatable steel C45, turned

Bearing bushing – special bronze CuSn8

Inner ring – bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100], hardened, ground, polished



Brand
FLURO
Symbol
GIS 10x1.25
Type
Fluro GIS - Series
Thread
M10x1.25
Type of thread
Right Internal
Specification
D - external diameter of the rod head [mm /inch]
28 / 1.10"
W - width of the inner ring [mm /inch]
14 / 0.55"
T - width of the outer ring [mm /inch]
10.5 / 0.41"
L- Lenght [mm /inch]
43 / 1.69"
GM - Thread length [mm /inch]
20 / 0.79"
Deflection angle
26°
Maximum static load [kN / lbs]
19.3 / 4338.81
Maximum dynamic load [kN / lbs]
10.0 / 2248.09
Weight
76 g / 0.168 lbs
