Tie rod end / rod end - uniball GILRS 30 FLURO - M30x2 left-hand internal (female)

Tie rod end / rod end - uniball GILRS 30 FLURO - M30x2 left-hand internal (female)

+ Add to compareAdd to shopping list
  • GIRS Series – Rod end with internal thread made of stainless steel, re-lubricated through a concave ball grease fitting. Suitable for use in corrosion-prone areas.

135,90 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

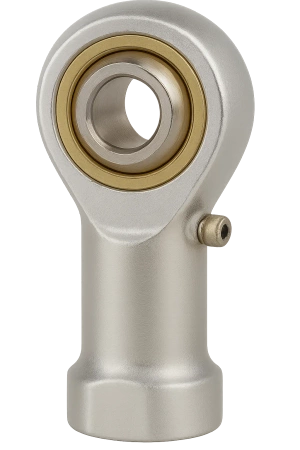

FLURO GILRS Rod End



GIRS Series - Rod end with internal thread made of stainless steel, re-lubricated through concave ball grease fitting.

For use in corrosion-prone areas.

Friction pair: chrome steel / steel.





Housing: stainless steel 1.4057, forged, polished; size 40 made of stainless steel 1.4057, turned.

Bearing shell - special bronze CuSn8.

Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished, hard chrome plated on sliding surfaces.



Brand
FLURO
Symbol
GILRS 30
Type
Fluro GIRS - Series
Thread
M30X2.0
Type of thread
Left Internal
Specification
D - external diameter of the rod head [mm /inch]
70 / 2.755"
W - width of the inner ring [mm /inch]
37 / 1.46"
T - width of the outer ring [mm /inch]
25 / 0.98"
L- Lenght [mm /inch]
110 / 4.33"
GM - Thread length [mm /inch]
51 / 2.01"
Deflection angle
30°
Maximum static load [kN / lbs]
155.0 / 34845.38
Maximum dynamic load [kN / lbs]
64.0 / 14387.77
Weight
1130 g / 2.491 lbs
