Tie rod end / rod end – uniball GILRS 20 R FLURO – M20x1.5 left-hand internal (female)
Tie rod end / rod end – uniball GILRS 20 R FLURO – M20x1.5 left-hand internal (female)
- GIRS R Series - Rod end with internal thread, stainless steel housing and stainless steel inner ring, lubricated through a concave spherical grease fitting. For use in corrosion-prone areas.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

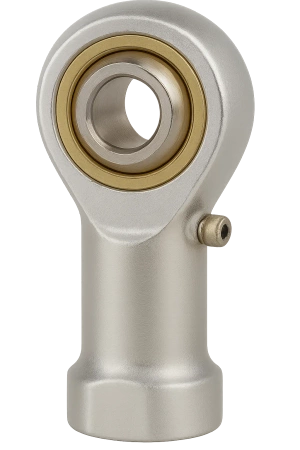

FLURO GILRS R Rod End
GIRS R Series – Rod end with internal thread, stainless steel housing and stainless steel inner ring, lubricated through a concave spherical grease fitting.
For use in corrosion-prone areas.
Sliding pair: NIRO / bronze.
Housing: stainless steel 1.4057, forged, polished; size 40 made of stainless steel 1.4057, turned.
Bearing liner – special bronze CuSn8.
Inner ring – bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100 ] hardened, ground, polished, hard chrome plated on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
50 / 1.97"
W - width of the inner ring [mm /inch]
25 / 0.99"
T - width of the outer ring [mm /inch]
18 / 0.71"
L- Lenght [mm /inch]
77 / 3.03"
GM - Thread length [mm /inch]
33 / 1.30"
Deflection angle
28°
Maximum static load [kN / lbs]
83.0 / 18659.14
Maximum dynamic load [kN / lbs]
31.5 / 7081.48
Weight
415 g / 0.915 lbs
