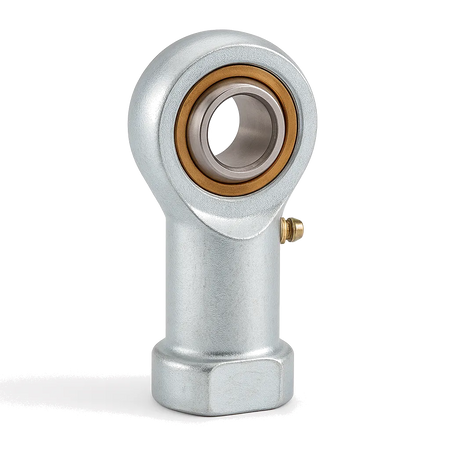

Rod-end head / rod end – uniball GILXS 20 FLURO – M20×1.5 left-hand internal (female)

Rod-end head / rod end – uniball GILXS 20 FLURO – M20×1.5 left-hand internal (female)

+ Add to compareAdd to shopping list
  • GIXS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via a concave spherical grease fitting. Suitable for use under high tensile and compressive loads

66,90 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

FLURO GIXS Rod End



GIXS Series – Rod end with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, lubricated via concave spherical grease fitting.

For use under high tensile / compressive loads.

Sliding pair: steel / bronze.





Housing: heat-treatable steel 1.7225 [DE 42CrMo4 / FR 42CrMo4 / IT 42CrMo4 / SE 2244 / UK 708M40 / USA AISI 4140], forged

Bearing liner – special bronze CuSn8

Inner ring – bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100], hardened, ground, polished



Brand
FLURO
Symbol
GILXS 20
Type
Fluro GIXS - Series
Thread
M20x1.5
Type of thread
Left Internal
Specification
D - external diameter of the rod head [mm /inch]
50 / 1.97"
W - width of the inner ring [mm /inch]
25 / 0.99"
T - width of the outer ring [mm /inch]
18 / 0.71"
L- Lenght [mm /inch]
77 / 3.03"
GM - Thread length [mm /inch]
33 / 1.30"
Deflection angle
28°
Maximum static load [kN / lbs]
93.5 / 21019.64
Maximum dynamic load [kN / lbs]
31.5 / 7081.48
Weight
415 g / 0.915 lbs
