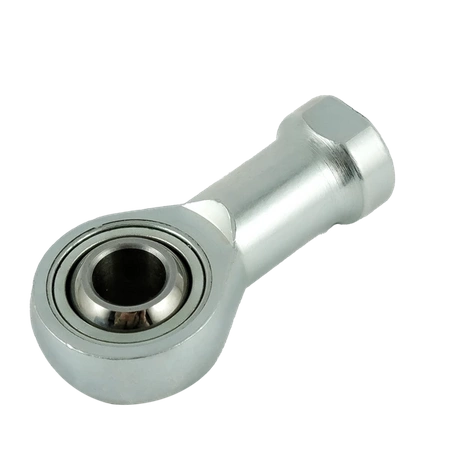

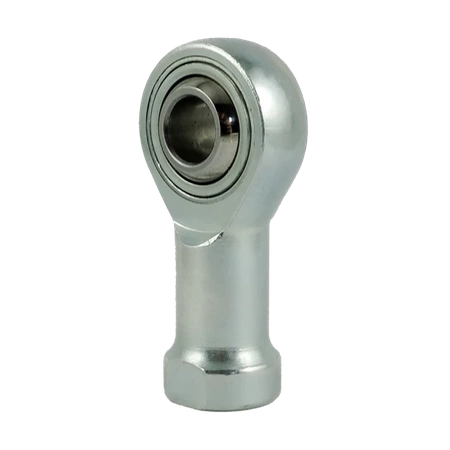

Rod-end head / rod end – uniball GILXSW 18 FLURO – M18×1.5 left-hand internal (female)
Rod-end head / rod end – uniball GILXSW 18 FLURO – M18×1.5 left-hand internal (female)
Rod-end head / rod end – uniball GILXSW 18 FLURO – M18×1.5 left-hand internal (female)
Rod-end head / rod end – uniball GILXSW 18 FLURO – M18×1.5 left-hand internal (female)

Rod-end head / rod end – uniball GILXSW 18 FLURO – M18×1.5 left-hand internal (female)

+ Add to compareAdd to shopping list
  • GIXSW Series – Rod end with internal thread made of heat-treated steel, zinc-plated, with PTFE liner (maintenance-free). Suitable for use under high tensile/compressive loads.

54,30 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is in constant sale
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is in constant sale
Shipment
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After paying for this item you will be awarded pts.

FLURO GIXSW Rod End



GIXSW Series - Rod end with internal thread made of heat-treated steel, zinc-plated, with PTFE liner (maintenance-free).

Suitable for high dynamic tensile/compressive loads. Dimensional series K - maintenance-free design.

Friction pair: steel/PTFE





Housing: heat-treated steel [DE 42CrMo4 / FR 42CrMo4 / IT 42CrMo4 / SE 2244 / UK 708M40 / USA Aisi 4140], forged

Bearing bushing - free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 /UK 230M07 /12L 13 ] with bonded PTFE layer

Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished

Brand
FLURO
Symbol
GILXSW 18
Type
Fluro GIXSW - Series
Thread
M18x1.5
Type of thread
Left Internal
Specification
D - external diameter of the rod head [mm /inch]
46 / 1.81"
W - width of the inner ring [mm /inch]
23 / 0.91"
T - width of the outer ring [mm /inch]
16.5 / 0.65"
L- Lenght [mm /inch]
71 / 2.80"
GM - Thread length [mm /inch]
32 / 1.26"
Deflection angle
30°
Maximum static load [kN / lbs]
81.5 / 18321.93
Maximum dynamic load [kN / lbs]
64.0 / 14387.77
Weight
320 g / 0.705 lbs
