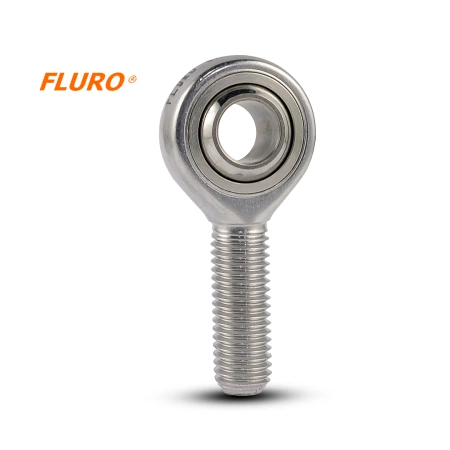

Tie rod end / tie rod end - uniball GARSW 14 FLURO - M14 right (male)
Tie rod end / tie rod end - uniball GARSW 14 FLURO - M14 right (male)
- GARSW Series - Stainless steel rod end with external thread, with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
GARSW FLURO Rod End
GARSW Series - Stainless steel rod end with external thread, with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - chrome-plated steel/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size 40 made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
36 / 1.42"
W - width of the inner ring [mm /inch]
19 / 0.75"
T - width of the outer ring [mm /inch]
13.5 / 0.53"
L- Lenght [mm /inch]
60 / 2.36"
GM - Thread length [mm /inch]
38 / 1.50"
Deflection angle
32°
Maximum static load [kN / lbs]
39.5 / 8879.95
Maximum dynamic load [kN / lbs]
42.0 / 9441.98
Weight
129 g / 0.284 lbs
