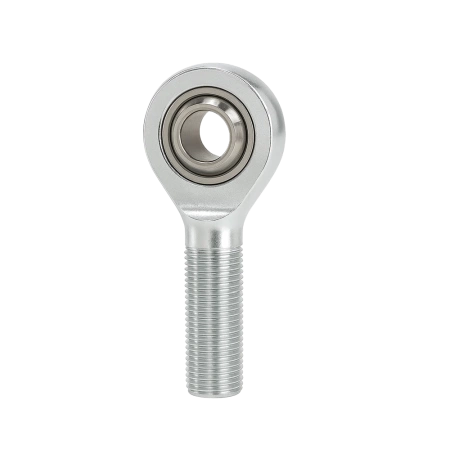

Tie rod end / rod end - uniball EAL 17 D-2RS FLURO - M16 left-hand external (male)

Tie rod end / rod end - uniball EAL 17 D-2RS FLURO - M16 left-hand external (male)

+ Add to compareAdd to shopping list
  • EA series – rod end, dimension series E with external thread, made of free-cutting steel or heat-treatable steel, zinc-plated, with maintenance-free spherical bearing.

37,50 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
The product is available in a very large quantity
Please contact the shop staff, in order to estimate time of preparing this product for shipment.
The product is available in a very large quantity
Shipment
Free and fast delivery
14 days for easy returns
Find out in which store you can check the product and buy it right away
Tie rod end / rod end - uniball EAL 17 D-2RS FLURO - M16 left-hand external (male)
Tie rod end / rod end - uniball EAL 17 D-2RS FLURO - M16 left-hand external (male)
uniwersalny
Safe shopping
After paying for this item you will be awarded pts.

FLURO Rod End EA D-2RS



Series EA – rod end, dimensional series E with external thread, made of free-cutting steel or heat-treated steel, zinc-plated, with maintenance-free spherical bearing.

For use in applications with high, one-sided loads and limited installation width.

Features a double-sided rubber contact seal (2RS), which protects the interior of the bearing from dust, water, and dirt – ideal for harsh operating environments

Dimensional series E – maintenance-free.

Sliding contact surface: steel / PTFE







Housing: up to size 10 made of free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned

from size 12 made of heat-treated steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged

Bearing – maintenance-free steel/PTFE bearing GE...EC

from size 20 available with double-sided seal (-2RS)

from size 35 only available with double-sided seal (-2RS)

Brand
FLURO
Symbol
EAL 17 D-2RS
Type
Fluro EA - 2RS Series
Thread
M16
Type of thread
Male Right
Specification
D - external diameter of the rod head [mm /inch]
46 / 1.81"
W - width of the inner ring [mm /inch]
14 / 0.55"
T - width of the outer ring [mm /inch]
11 / 0.43"
L- Lenght [mm /inch]
69 / 2.72"
GM - Thread length [mm /inch]
36 / 1.42"
Deflection angle
20°
Maximum static load [kN / lbs]
54.0 / 12139.68
Maximum dynamic load [kN / lbs]
22.5 / 5058.20
Weight
190 g / 0.419 lbs
