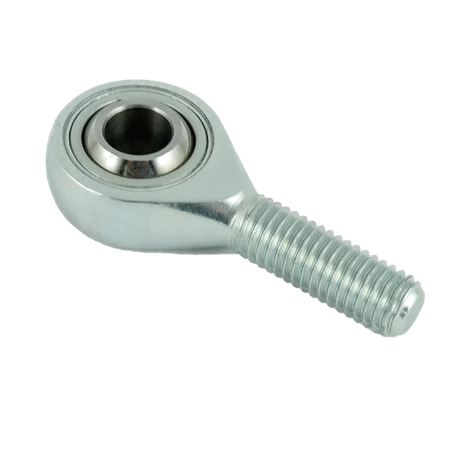

Tie rod end / rod end – uniball GALRS 20 R FLURO – M20x1.5 left-hand external (male)
Tie rod end / rod end – uniball GALRS 20 R FLURO – M20x1.5 left-hand external (male)
- Tie rod end / rod end – uniball GALRS 20 R FLURO – M20x1.5 left-hand external (male)
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

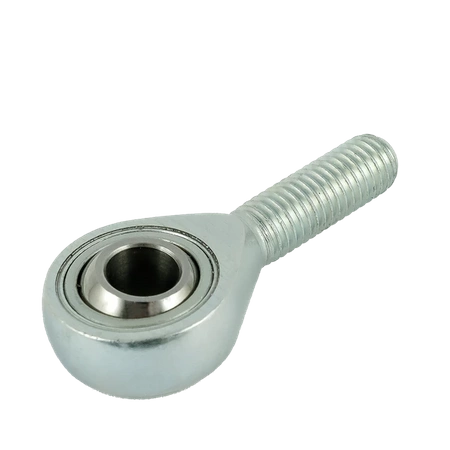

GALRS R FLURO Rod End
GARS Series - Rod end with a stainless housing and inner ring. For use in corrosion-prone areas.
Dimensional series K - stainless.
Sliding pair - NIRO / bronze
Housing: stainless steel 1.4057, forged, polished. Size 40 in stainless steel 1.4057, machined
Bearing liner: special bronze CuSn8
Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US AISI 52100], hardened, ground, polished, hard-chrome plated on the sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
50 / 1.97"
W - width of the inner ring [mm /inch]
25 / 0.99"
T - width of the outer ring [mm /inch]
18 / 0.71"
L- Lenght [mm /inch]
78 / 3.07"
GM - Thread length [mm /inch]
47 / 1.85"
Deflection angle
28°
Maximum static load [kN / lbs]
83.0 / 18659.14
Maximum dynamic load [kN / lbs]
31.5 / 7081.48
Weight
348g / 0.77lbs
