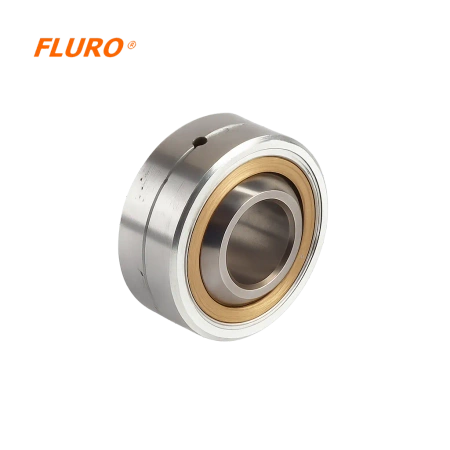

FLURO GL 16 spherical plain bearing
FLURO GL 16 spherical plain bearing
- GL Series – spherical plain bearing with a free-machining steel inner ring, zinc-plated and relubricable. Especially suitable for axial loads
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
GL FLURO spherical plain bearing
GL SERIES – spherical plain bearing with a free-machining steel inner ring, zinc-plated, relubricable.
Particularly suitable for axial loads.
For applications with high, unidirectional loads and limited installation width.
Dimensional series K – standard.
Friction pair: steel / brass
Outer ring: free-machining steel 9SMnPb28K, turned
Bearing liner – special brass CuZn40Al1
Inner ring: bearing steel 100Cr6, hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
38 / 1.50"
W - width of the inner ring [mm /inch]
21 / 0.83"
T - width of the outer ring [mm /inch]
15 / 0.59"
Deflection angle
30°
Maximum static load [kN / lbs]
64.5 / 14500.18
Maximum dynamic load [kN / lbs]
16.0 / 3596.94
Weight
115 g / 0.254 lbs
