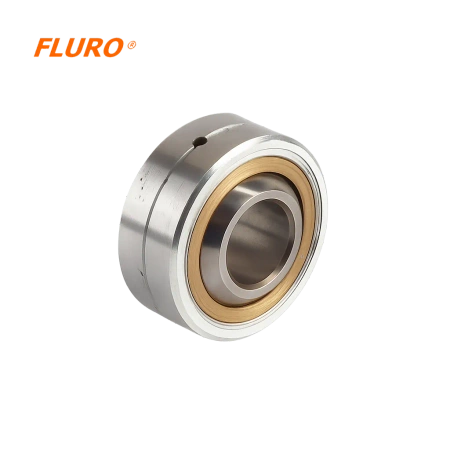

FLURO GL 8 spherical plain bearing
FLURO GL 8 spherical plain bearing
- GL Series – spherical plain bearing with a free-machining steel inner ring, zinc-plated and relubricable. Especially suitable for axial loads
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
GL FLURO spherical plain bearing
GL SERIES – spherical plain bearing with a free-machining steel inner ring, zinc-plated, relubricable.
Particularly suitable for axial loads.
For applications with high, unidirectional loads and limited installation width.
Dimensional series K – standard.
Friction pair: steel / brass
Outer ring: free-machining steel 9SMnPb28K, turned
Bearing liner – special brass CuZn40Al1
Inner ring: bearing steel 100Cr6, hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
22 / 0.87"
W - width of the inner ring [mm /inch]
12 / 0.47"
T - width of the outer ring [mm /inch]
9.0 / 0.35"
Deflection angle
28°
Maximum static load [kN / lbs]
21.6 / 4855.87
Maximum dynamic load [kN / lbs]
5.4 / 1213.97
Weight
23 g
