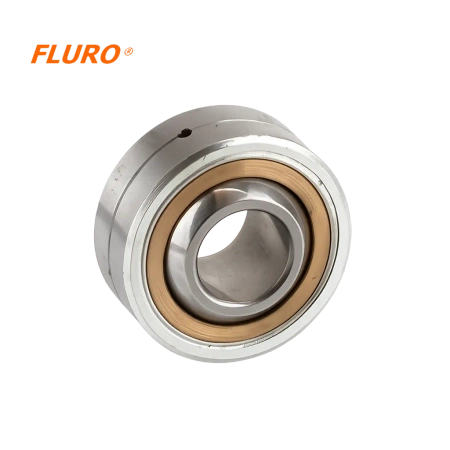

GLXS Spherical Plain Bearing FLURO
GLXS SERIES – spherical plain bearing with an outer ring made of free-cutting steel, zinc-plated, re-lubricable.
Designed for use at higher rotational speeds.
Dimension series K – for demanding applications.
Sliding pair – steel / bronze.
Outer ring: free-cutting steel 9SMnPb28K, turned
Bearing liner – special bronze CuSn8
Inner ring: bearing steel 100Cr6, hardened, ground, polished
1) without re-lubrication
2) one-piece outer ring CuSn8
Specification
D - external diameter of the rod head [mm /inch]
34 / 1.34"
W - width of the inner ring [mm /inch]
19 / 0.75"
T - width of the outer ring [mm /inch]
13.5 / 0.53"
Deflection angle
32°
Maximum static load [kN / lbs]
102.5 / 23042.92
Maximum dynamic load [kN / lbs]
17.5 / 3934.16
Weight
83 g / 0.183 lbs
