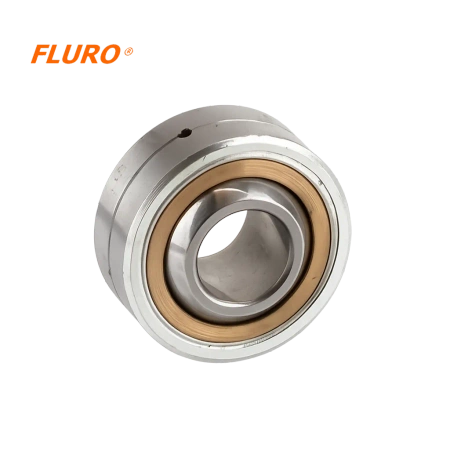

FLURO GLXS 30 spherical plain bearing
FLURO GLXS 30 spherical plain bearing
- GLXS SERIES – spherical plain bearing with an outer ring made of free-cutting steel, zinc-plated, re-lubricable. Designed for use at higher rotational speeds.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
GLXS Spherical Plain Bearing FLURO
GLXS SERIES – spherical plain bearing with an outer ring made of free-cutting steel, zinc-plated, re-lubricable.
Designed for use at higher rotational speeds.
Dimension series K – for demanding applications.
Sliding pair – steel / bronze.
Outer ring: free-cutting steel 9SMnPb28K, turned
Bearing liner – special bronze CuSn8
Inner ring: bearing steel 100Cr6, hardened, ground, polished
1) without re-lubrication
2) one-piece outer ring CuSn8
Specification
D - external diameter of the rod head [mm /inch]
66 / 2.60"
W - width of the inner ring [mm /inch]
37 / 1.46"
T - width of the outer ring [mm /inch]
25 / 0.98"
Deflection angle
34°
Maximum static load [kN / lbs]
381.0 / 85652.21
Maximum dynamic load [kN / lbs]
64.0 / 14387.77
Weight
540 g / 1.019 lbs
