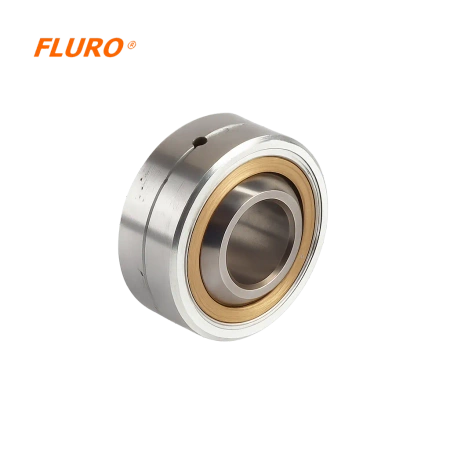

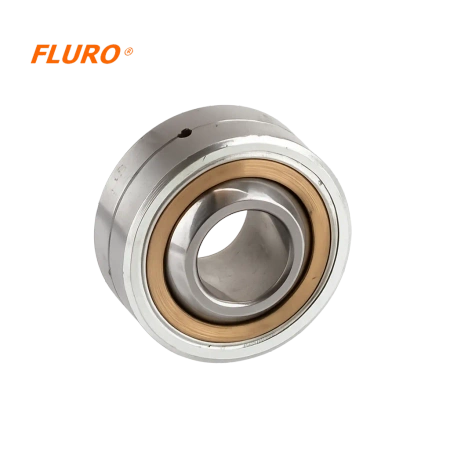

FLURO GLXS 5 spherical plain bearing
FLURO GLXS 5 spherical plain bearing
- GLXS SERIES – spherical plain bearing with an outer ring made of free-cutting steel, zinc-plated, re-lubricable. Designed for use at higher rotational speeds.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
GLXS Spherical Plain Bearing FLURO
GLXS SERIES – spherical plain bearing with an outer ring made of free-cutting steel, zinc-plated, re-lubricable.
Designed for use at higher rotational speeds.
Dimension series K – for demanding applications.
Sliding pair – steel / bronze.
Outer ring: free-cutting steel 9SMnPb28K, turned
Bearing liner – special bronze CuSn8
Inner ring: bearing steel 100Cr6, hardened, ground, polished
1) without re-lubrication
2) one-piece outer ring CuSn8
Specification
D - external diameter of the rod head [mm /inch]
16 / 0.63"
W - width of the inner ring [mm /inch]
8 / 0.31"
T - width of the outer ring [mm /inch]
6 / 0.24"
Deflection angle
26°
Maximum static load [kN / lbs]
19.8 / 4451.22
Maximum dynamic load [kN / lbs]
3.3 / 741.87
Weight
8 g / 0.018 lbs
