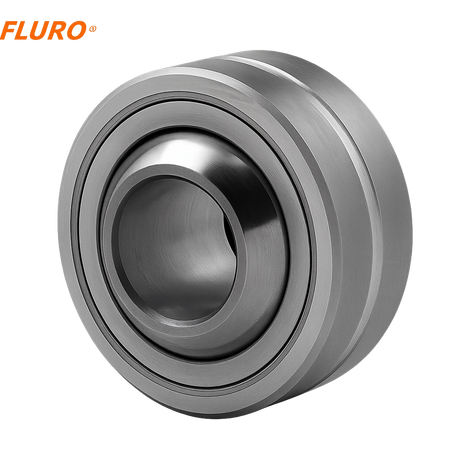

Fluro GLXSW 10 spherical plain bearing 10x26x14
Fluro GLXSW 10 spherical plain bearing 10x26x14
- GLXSW SERIES – spherical plain bearing with an outer ring made of free-cutting steel, zinc-plated, maintenance-free. Designed for use under high dynamic tensile and compressive loads.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
GLXSW Spherical Plain Bearing FLURO
GLXSW SERIES – spherical plain bearing with an outer ring made of free-cutting steel, zinc-plated, maintenance-free.
Designed for use under high dynamic tensile and compressive loads.
Dimension series K – maintenance-free.
Sliding pair – steel / PTFE.
Outer ring: free-cutting steel 9SMnPb28K, turned.
Bearing liner – free-cutting steel 9SMnPb28K with bonded PTFE layer.
Inner ring: bearing steel 100Cr6, hardened, ground, polished
1) one-piece outer ring made of 45S20

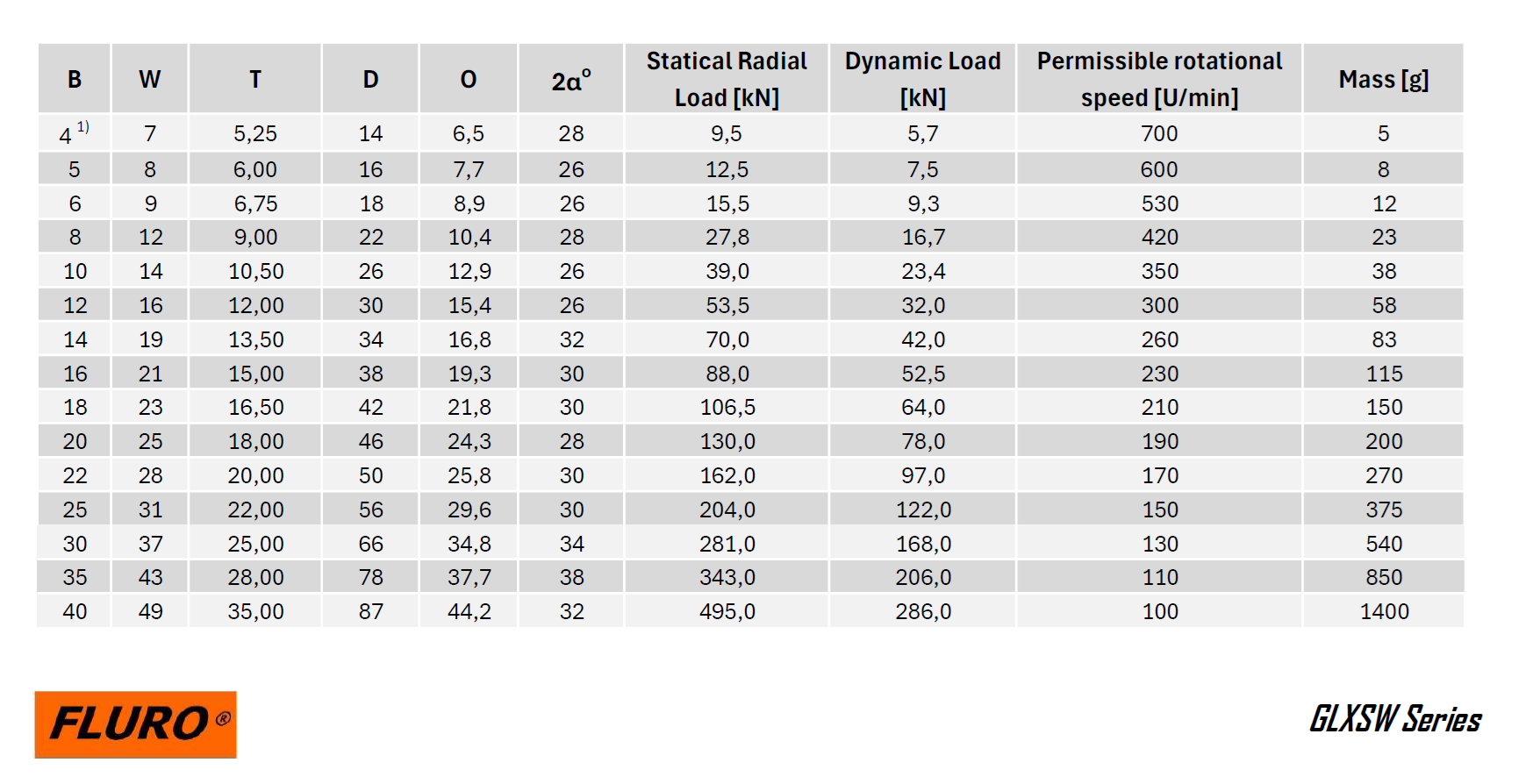

Specification
D - external diameter of the rod head [mm /inch]
26 / 1.02"
W - width of the inner ring [mm /inch]
14 / 0.55"
T - width of the outer ring [mm /inch]
10.5 / 0.41"
Deflection angle
26°
Maximum static load [kN / lbs]
39.0 / 8767.55
Maximum dynamic load [kN / lbs]
23.4 / 5260.53
Weight
38 g / 0.084 lbs
