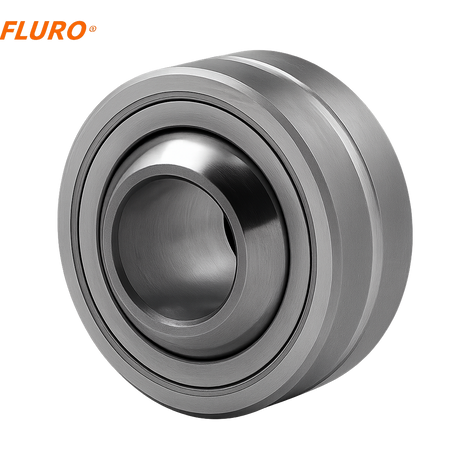

FLURO GLXSW 35 spherical plain bearing
FLURO GLXSW 35 spherical plain bearing
- GLXSW SERIES – spherical plain bearing with an outer ring made of free-cutting steel, zinc-plated, maintenance-free. Designed for use under high dynamic tensile and compressive loads.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
GLXSW Spherical Plain Bearing FLURO
GLXSW SERIES – spherical plain bearing with an outer ring made of free-cutting steel, zinc-plated, maintenance-free.
Designed for use under high dynamic tensile and compressive loads.
Dimension series K – maintenance-free.
Sliding pair – steel / PTFE.
Outer ring: free-cutting steel 9SMnPb28K, turned.
Bearing liner – free-cutting steel 9SMnPb28K with bonded PTFE layer.
Inner ring: bearing steel 100Cr6, hardened, ground, polished
1) one-piece outer ring made of 45S20
Specification
D - external diameter of the rod head [mm /inch]
78 / 3.07"
W - width of the inner ring [mm /inch]
43 / 1.69"
T - width of the outer ring [mm /inch]
28 / 1.10"
Deflection angle
38°
Maximum static load [kN / lbs]
343.0 / 77109.47
Maximum dynamic load [kN / lbs]
206.0 / 46310.64
Weight
850 g / 1.874 lbs
